CNCL Polishing unit with Rotary Table
Model Name
TR + CNCL
Series
Automatic Polishing Machines
Data
-
Manufacturer information
provider logo
COSMAP
For over 40 years COSMAP has been manufacturing automatic rotary table machines for grinding and polishing and robotic cells for linishing.
Problem with product info?
Update request
Manufacturer
COSMAP
Brand
-
SKU
129656
Product Name
CNCL Polishing unit with Rotary Table
Model Name
TR + CNCL
Size
-
Weight
-
Product Details

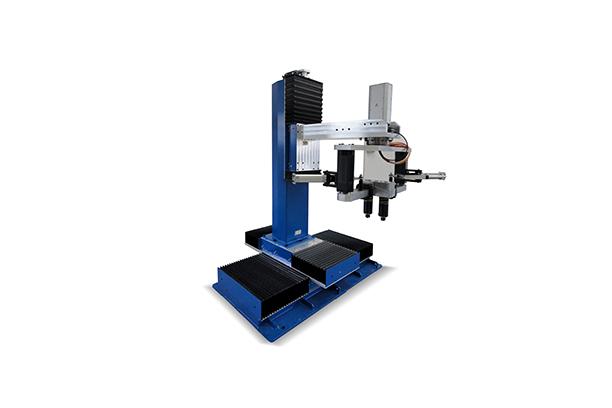

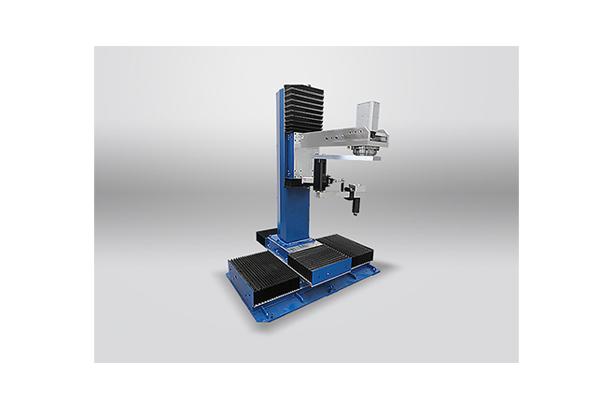

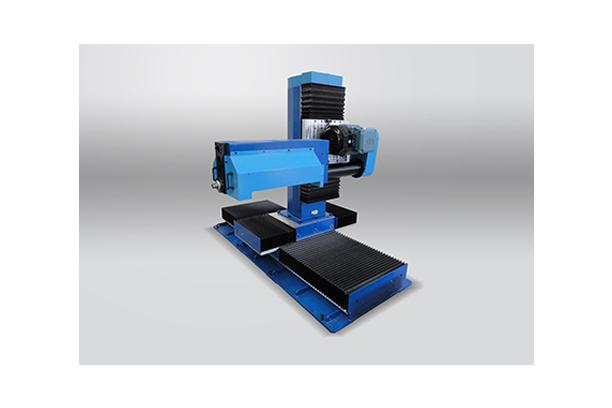

Indexed rotary table with C.N.C.L. type polishing unit for sinks and tubs

The ideal solution for the buffing and polishing treatment of sinks and similar products.

Maintaining the polishing flexibility of the CNC unit, the CNCL buffing unit is equipped with a single or double arm with a program software-operating pneumatic working pressure controller.

These special units can operate on their own or combined with a bench or rotary table.

The fixture on the spindle can be static or moved by one or two controlled axes, interpolated with the axes of the polishing unit.

Possibility to substitute the polishing unit column with a special equipment that allows to polish tanks with radiant angle of twenty-five to fifteen mm. There is also the possibility to polish non-linear and complex shaped tanks.


Possibility to polish tanks/tubs with a radiant angle between twenty-five and fifteen millimetres

High production rate thanks to the Rotary Table and the hidden loading/unloading times

The great flexibility of the CNC unit allows to polish any kind of sink – even complex-shaped ones

Possibility to interpolate the axes of the fixture and those of the unit

Fast and certified machine set-up, hence immediate production change

Programming easiness with self-learning system, with no need to learn any machine programming language

Working unit sizing variable according to the client’s needs (from mini CNC to heavy CNC)


COSMAPFor over 40 years COSMAP has been manufacturing automatic rotary table machines for grinding and polishing and robotic cells for linishing.
  C.O.S.M.A.P. srl Developed on a solid business concept, C.O.S.M.A.P. is the result of over 35 years of experience in the metal surfaces treatment field. The techno logic know-how acquired, and the constant research for the best solutions for and with the client grant us a worldwide-acknowledged leadership.   Mission To create, thanks to cutting edge technology, machines capable of granting high quality and repeatable standard, even where only an operator could get at the cost of great waste of time and effort   Vision To get as soon as possible to be a worldwide reference for polishing and grinding systems, keeping up with the growing exigencies of our customers. For us, to automatize the process thanks to the latest technologies means to boost the confidence of the operators, making them become skilled professionals always able to manage high-end machinery.   Our Competitive advantage The implementation of technologic innovation on the revolutionary solutions offered by C.O.S.M.A.P. to the clients is vital for us. An eye open onto the future, leads us to achieve every day the highest quality standards for our products. The exclusivity granted by C.O.S.M.A.P. when taking care of the client’s needs, goes way past finding a simple solution to the situation, which makes us a reliable partner.   New customers see us as trustworthy friends, and are always reassured by the positive feedback from returning customers, constantly acknowledging our efforts and results concerning the process and the great efficiency of our products.
