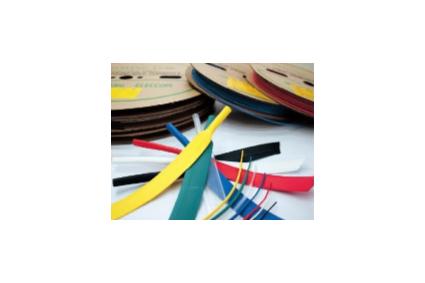

product Image
Heat Shrinkable Tube
Model Name
-
Series
Heat Shrinkable Tube
Data
-
Manufacturer information
provider logo
DAECHANG ELECCOM

Heat Shrinkable Tube, PVC Insulation Tube, Dual Wall Tube, UL Cable, KS Cable, PSE Cable and more

Problem with product info?
Update request
Manufacturer
DAECHANG ELECCOM
Brand
-
SKU
129938
Product Name
Heat Shrinkable Tube
Model Name
-
Size
-
Weight
-
Product Details

SHRINK RATIO
More than 50%
OPERATING TEMP.
125℃, 600V
MATERIALSFlexible flame retardant polyolefin and high thermal endurance
COLOR
All colors are available
APPLICATION
Wire harness, Transformer Switcher
RECOGNITION & CERTIFICATION
UL 224 E120268
ORDERING ON REQUEST
Halogen free polyolefin, High shrinkage tube
Thinner Wall tube(300V)
MARKING

E120268  XLPO 600V 125℃ VW-1 DC-125 ##mm DAE CHANG -H/F-




Test and Performance Data

Properties

Condition

Data

Tensile Strength

Over 1.20kgf/mm²(1.50kgf/mm²)

Elongation

Over 350%

Hardness

ISO 868

45~60D

Deformation

125℃ X 1hrs

less than 25%

Heat Shock

136℃ X 1hrs

no crack

Cold bend

-10℃ X 1hrs

no crack

Non-flammability

VW―1

Passed

After aging

158℃(175℃) X 168hrs

Tensile strength

more than 80% of the original

Elongation

more than 300%

Dielectric Strength

more than 2.5kV

Volume resistivity

1 X 10Ω·cm

Corrosion

158℃ X 168hrs

passed

Copper Stability

passed

In oil bath

Tensile strength

more than 1.4kgf/mm²

Elongation

more than 300%








Standard Size

Normal Size

As Supplied(mm)

After Recovered(mm)

Inside Diameter

Wall Thickness

Inside Diameter. Max

Wall Thickness. Min

0.8mm

0.9±0.3

0.17±0.05

0.50

0.28±0.05

1.0mm

1.3±0.3

0.17±0.05

0.60

0.28±0.05

1.2mm

1.5±0.3

0.17±0.05

0.65

0.30±0.05

1.5mm

1.8±0.3

0.17±0.05

0.80

0.30±0.05

2.0mm

2.4±0.3

0.17±0.05

1.0

0.35±0.05

2.5mm

2.9±0.3

0.17±0.05

1.25

0.38±0.05

3.0mm

3.4±0.4

0.22±0.05

1.5

0.38±0.07

3.5mm

3.8±0.4

0.22±0.05

1.75

0.40±0.07

4.0mm

4.4±0.4

0.22±0.05

2.0

0.45±0.07

5.0mm

5.5±0.4

0.22±0.05

2.5

0.47±0.10

6.0mm

6.5±0.4

0.24±0.05

3.0

0.55±0.10

7.0mm

7.5±0.4

0.30±0.05

3.5

0.55±0.10

8.0mm

8.5±0.5

0.30±0.05

4.0

0.60±0.10

9.0mm

9.5±0.5

0.32±0.05

4.5

0.60±0.10

10.0mm

10.5±0.5

0.32±0.05

5.0

0.60±0.10

11.0mm

11.5±0.5

0.32±0.05

5.5

0.60±0.10

12.0mm

12.5±0.5

0.32±0.05

6.0

0.65±0.10

13.0mm

13.5±0.5

0.35±0.05

6.5

0.65±0.10

14.0mm

14.5±0.5

0.35±0.05

7.0

0.65±0.10

15.0mm

15.5±0.6

0.38±0.05

7.5

0.75±0.10

16.0mm

16.5±0.6

0.38±0.05

8.0

0.75±0.10

18.0mm

18.5±0.6

0.43±0.05

9.0

0.80±0.18

20.0mm

20.6±0.7

0.43±0.05

10.0

0.8±0.18

22.0mm

22.6±0.7

0.48±0.05

11.0

0.8±0.18

25.0mm

25.6±0.7

0.48±0.05

12.5

0.95±0.18

28.0mm

29.0±0.7

0.48±0.05

14.0

0.95±0.18

30.0mm

31.0±0.7

0.55±0.05

15.0

0.95±0.18

35.0mm

36.0±1.0

0.55±0.05

17.0

1.10±0.20

38.0mm

39.5±1.0

0.55±0.05

19.0

1.10±0.20

40.0mm

41.5±1.0

0.55±0.05

20.0

1.10±0.20

45.0mm

47.0±1.0

0.60±0.05

23.0

1.15±0.20

50.0mm

52.0±1.0

0.60±0.05

25.0

1.15±0.20
