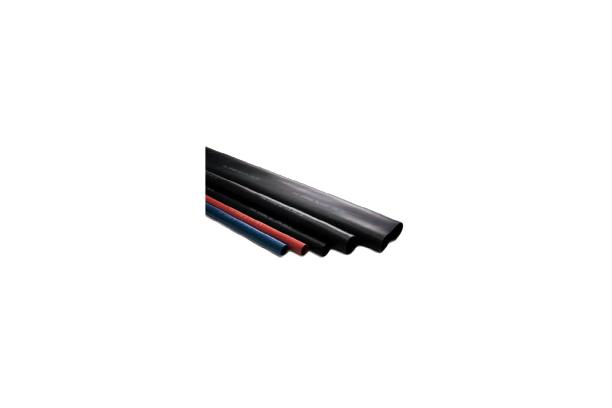

product Image
Dual Wall Tubing
Model Name
-
Series
Medium Wall Dual Tube
Data
-
Manufacturer information
provider logo
DAECHANG ELECCOM

Heat Shrinkable Tube, PVC Insulation Tube, Dual Wall Tube, UL Cable, KS Cable, PSE Cable and more

Problem with product info?
Update request
Manufacturer
DAECHANG ELECCOM
Brand
-
SKU
129941
Product Name
Dual Wall Tubing
Model Name
-
Size
-
Weight
-
Product Details

Test and Performance Data

Properties

Condition

Data

Operating temp. (โ„ƒ)

KS M 3006 (UL224)

-45โ„ƒ ~ +105โ„ƒ

Tensile strength

KS M 3006 (UL224)

over 1.5kgf/mmยฒ

Ultimate elongation

ISO/R 1183 Method A

over 350%

Specific gravity

ISO 868

1.1~1.22g/cmยฒ

Hardness

45-60D

After Aging

Tensile Strength

KS M 3515 (UL224)

over 1.2kg/mmยฒ

Elongation

KS M 3515 (UL224)

over 300%

Thermal endurance

IEC 216 (UL224)

more 120โ„ƒ

Low-temp. flexible

ASTM D 2617 (UL224)

no Crack

Dielectric strength

ASTM D 149 (UL224)

more 200kV/cm

Volume resistivity

KS M 3034 (UL224)

1 X 10โ„ฆยทcm

Dielectric constant

ASMT D 150 (UL224)

5

Water absorption

KS M 3027

under 0.2%

In oil bath

Tensile strength

KS M 3006 (UL224)

more 1.4kgf/mmยฒ

Elongation

KS M 3006 (UL224)

more 300%

Corrosion

UL224

no damage

Hot-melt adhesive

Softening point

KS M 3076

81โ„ƒ

Water absorption

KS M 3027

under 0.5%

Peeling test

ASTM D 1000

50kg/mm

Materials

Flame Retardant Adhesive

Non Flame Retardant Adhesive

Flame

Non Flame





Standard Size

Description

Unit Length (M)

Expanded inner Dia (mm)

Recovered Inner Dia (mm)

Recovered Thickness(mm)

9/3

1.2

9+2

3

2.0ยฑ0.2

12/4

1.2

12+2

4

2.0ยฑ0.2

16/5

1.2

16+2

5

2.0ยฑ0.2

22/7

1.2

22+3

7

2.5ยฑ0.2

28/9

1.2

28+3

9

2.6ยฑ0.2

33/11

1.2

33+3

11

2.7ยฑ0.2

38/13

1.2

38+3

13

2.7ยฑ0.2

45/14

1.2

42+5

14

2.7ยฑ0.2

55/18

1.2

55+5

18

2.9ยฑ0.3

65/22

1.2

65+5

22

3.0ยฑ0.3

75/25

1.2

75+5

25

3.2ยฑ0.3

85/28

1.2

85+5

28

3.2ยฑ0.3

100/33

1.2

100+7

33

3.2ยฑ0.4

120/38

1.2

115+7

38

3.2ยฑ0.4

140/47

1.2

140+7

47

3.2ยฑ0.4
