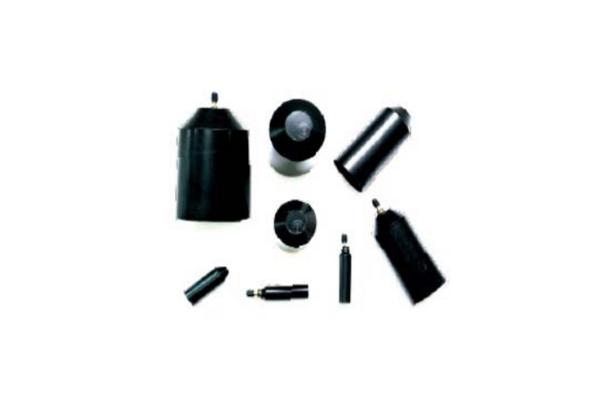

Heat Shrinkable End-Caps
Model Name
-
Series
Heat Shrinkable End-Caps
Data
-
Manufacturer information
provider logo
DAECHANG ELECCOMHeat Shrinkable Tube, PVC Insulation Tube, Dual Wall Tube, UL Cable, KS Cable, PSE Cable and more
Problem with product info?
Update request
Manufacturer
DAECHANG ELECCOM
Brand
-
SKU
129944
Product Name
Heat Shrinkable End-Caps
Model Name
-
Size
-
Weight
-
Product Details

SHRINK RATIO

More than 50%

OPERATING TEMP.

-40℃~85℃

ELECTRICAL INSULATION

1000V

MATERIALS

Radiation crossed linked polyolefin

The internal coating of high grade hot melt sealant guarantees excellent bonding on plastic and metals

COLOR

Black

APPLICATION

Pressure-tight seal on the ends of communication, power cable and electric leads preventing from water electrical and mechanical protection.

TYPE

Valve type

Non Valve Type

ORDERING ON

With or with out adhesive sealant

REQUEST

Other Dimensions





Standard Size

Commercial (mm)

As Supplied Inner Dia(min)

Length

Adhesive Length

After Recovered (mm)

Inner Dia(Max)

Length(±10%)

Thickness(±20%)

16/8-70

16±5

70

35

8

70

2.2

20/8-70

20±5

70

35

8

70

2.3

30/14-90

30±5

90

45

14

90

3.0

40/19-90

40±5

90

45

19

90

3.3

55/27-115

55±7

115

50

27

115

3.3

75/35-125

70±5

140

60

35

140

3.5

100/50-140

100±5

140

70

50

140

3.5

120/70-155

120±5

155

80

70

155

40
