Manufacturer
DAEDONG MARINE TECH
Brand
-
SKU
118811

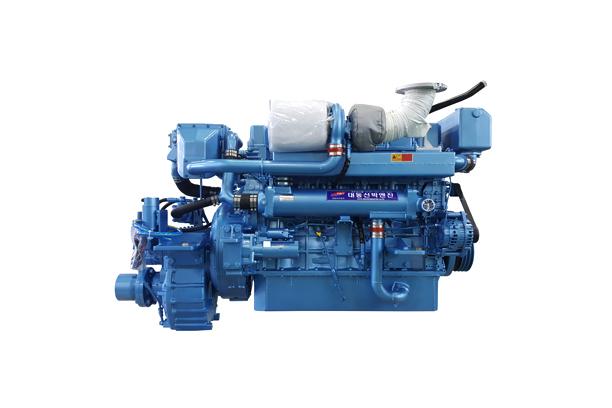

Product Name
대동선박엔진
Model Name
DD6HA
Size
-
Weight
-
Product Details
PRODUCT SPEC.
| ENGINE MODEL | DD6HA | |
|---|---|---|
| 형식 | 4 CYCLE IN-LINE | |
| 출력/회전수 | 410/2000 | |
| 실린더수 | 6 | |
| 실린더x행정 | mm | 122×142 |
| 배기량 | cc | 9,960 |
| 압축비 | 17:1 | |
| 연소방식 | D/I | |
| 흡입방식 | T/C | |
| 사용연료 | DIESEL LIGHT OIL | |
| 연료소비율 | 145 | |
| 사용윤활유 | API CLASS “CC””CD” | |
| 냉각방식 | FRESH WATER COOLING WITH CENTRIFUGAL PUMP | |
| 연료분사펌프 | BOSCH TYPE | |
| 윤환류소모량 | 0.95 | |
| 스타팅시스템 | ELECTRIC STARTING (DC24V) | |
| 감속장치 | MODEL | DMT150H |
| RATIO | 2.00~3.46 | |
| 면적 | L | 1,739 |
| W | 900 | |
| H | 1,360 | |
| 무게(kgs) | 1,480 | |
선박용 외형 치수
기본 외형치수
| 기종 | 감속기 부착 사양 | A | B | C | D | E | E | F | G | H | J | L | M(M) | N | O | P | Q | R | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DD4BB | 18AL | 605 | 1036 | 941 | 500 | 67.1 | 67.1 | 428 | 220 | 350 | 70 | 60 | 550 | 119 | 1″ | 11″ | 799 | 185 | 242 | 244 |
| DD4AF | 25A | 654 | 1120 | 870 | 500 | 68.7 | 68.7 | 557 | 285 | 507 | 70 | 60 | 600 | 118.7 | 1″ | 1″ | 826 | 151.5 | 242 | 243.7 |
| DD4DA | 25AL | 760 | 1120 | 820 | 500 | 68.7 | 68.7 | 557 | 285 | 507 | 70 | 60 | 600 | 118.7 | 1″ | 1″ | 826 | 151.5 | 242 | 243.7 |
| DD4DD | 50A | 620 | 1261 | 961 | 620 | 605 | 185 | 505 | 275 | 520 | 72 | 72 | 605 | 150 | 11/4″ | 11/4″ | 986 | 200 | 243 | 301 |
| DD6GA | 70T | 640 | 1545 | 888 | 500 | 95.5 | 95.5 | 804 | 380 | 720 | 100 | 70 | 640 | 160.5 | 11/4: | 11/4″ | 1164 | 219.5 | 252 | 323.5 |
| DD6AZ | 90A | 700 | 1540 | 1050 | 620 | 130 | 184.5 | 750 | 430 | 680 | 80 | 80 | 700 | 1605 | 11/2″ | 11/4 | 1110 | 200 | 340 | 323 |
| DD6ATZ | 110A | 900 | 1690 | 7087 | 580 | 200 | 200 | 919.6 | 480 | 850.6 | 90 | 90 | 700 | 195 | 11/2″ | 11/4″ | 1329.6 | 238.2 | 306 | 388 |
| DD6AT2 | 140H | 900 | 1739 | 1087 | 580 | 200 | 200 | 919.6 | 480 | 8503.6 | 90 | 90 | 700 | 195 | 2″ | 11/4″ | 1338.6 | 238.2 | 342 | 388 |
| DD6AC | 140H | 900 | 1739 | 1087 | 580 | 200 | 200 | 919.6 | 480 | 850.6 | 90 | 90 | 700 | 195 | 2″ | 11/4″ | 1338.6 | 238.2 | 342 | 388 |
| DD6HA | 150H | 900 | 1996 | 1200 | 800 | 190 | 245 | 925 | 490 | 825 | 90 | 90 | 770 | 190 | 2″ | 11/4″ | 1366 | 238.2 | 320 | 438 |
| DD6CC | 240H | 920 | 2130 | 1308.3 | 620 | 178.2 | 293 | 971.5 | 457 | 907.6 | 90 | 90 | 700 | 211.3 | 2″ | 11/4″ | 1427.7 | 271 | 381 | 458 |
| DD6CE | P7500 | 920 | 2130 | 1450 | 620 | 178.2 | 293 | 971.5 | 457 | 907.6 | 90 | 90 | 700 | 227 | 2″ | 11/4″ | 1427.7 | 271 | 381 | 634 |
