Water/Oil Temperature Controllers

Model Name

DHMW-30

Series

Water/Oil Temperature Controllers

View AllView All Series

Data

Manufacturer information

DAEHO COOLERWater Chiller, Heat Pump, Portable Air Conditioner, Temperature & Humidity Chamber, Heat Exchanger and more

Problem with product info?

Update request

Manufacturer

DAEHO COOLER

Brand

SKU

129625

Product Name

Water/Oil Temperature Controllers

Model Name

DHMW-30, DHMW-60, DHMW-90, DHMW-120, DHMW-150, DHMO-30, DHMO-60, DHMO-90, DHMO-120, DHMO-150

Size

Weight

Product Details

MW/MO SERIES

CHARACTERISTIC

- Cooling Efficiency System

- Easy to move and install at any place with a small size and at attached Caster

- Simple, good looking, and comfortable controller for using

- Use of IN, OUT Ball valve made in Italy

STANDARD SPECIFICATION

Item	For Water	DHMW-30	DHMW-60	DHMW-90	DHMW-120	DHMW-150
Item	For Oil	DHMO-30	DHMO-60	DHMO-90	DHMO-120	DHMO-150
Medium	For Water	Clean Water
Medium	For Oil	Thermia Oil
Cooling Method	For Water	Direct / Indirect cooling method
Cooling Method	For Oil	Indirect cooling method
Temperature Regulation Range	For Water	Feed water temperature ~ Max. 130℃
Temperature Regulation Range	For Oil	40℃ ~ Max. 150℃
Heater(Kw)		4	6	9	12	15
Pump	Seal Type	Mechanical Seal
	Output(Kw)	0.7	1.2	1.5	1.5	2.0
	Max. Flow(ℓ/min)	60	60	100	150	200
Tank Capacity	For Water(℃)	5	8	12	15	15
Tank Capacity	For Oil(℃)	2.5	5	5	5	5
Aux. Tank	For Water(℃)	2.5	5	5	5	5
Aux. Tank	For Oil(℃)	5	8	12	15	15
Cooler(A)		15	20	25	25	25
Temperature Control		PID Control
Pipes(A,(inch))	Outlet for Medium(A)	15	20	25	32
	Reduction in Medium(A)	15	20	25	32
	Inlet for Coolant(A)	10	15
	Outlet for Coolant(A)	10	15
	Water Discharge(A)	15	20	25
Total Power Consumption(Kw/h)		5	7.75	10.5	14	17
Dimension(L x W x H)		640 x 280 x 530	700 x 340 x 630	730 x 940 x 630	835 x 340 x 630	880 x 470 x 680
Power(V)		AC 3Φ 220/380V 50/60Hz

※ All the details can be changed without any notice with the products developed.

More products

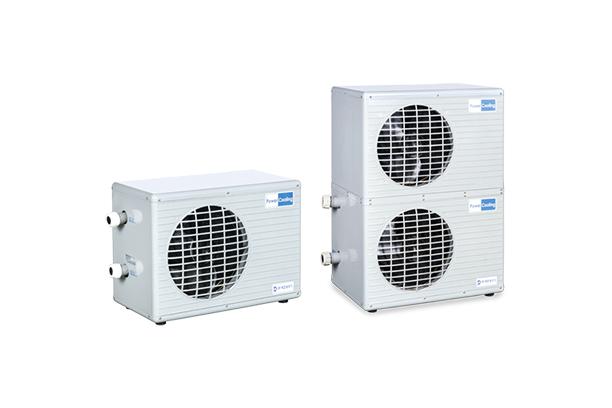

Heat Exchanger1HP~3HP SERIES

Air Cooled ConditionerDH-COOLSPOT

Inverter Hybrid BoilerAWH-025XB, AWB-016V, AWC-025X, AWD-025XB

Water Source Heat Pump

Geothemal Source Heat PumpDH-05HG

Air-source Heat PumpDHB-15, DHB-20, DHB-30, DHS-20, DHS-10, DHS-50HG

Ultra-low Temperature Chamber

Ultra-low Temperature Chiller

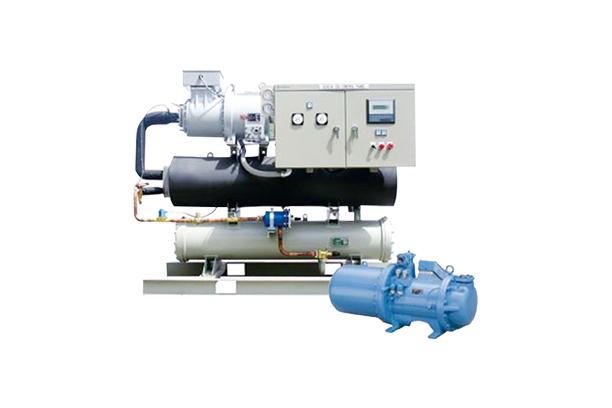

Screw Chiller Water Cooled Type / FU SHENGDHS-30F, DHS-40F, DHS-50F, DHS-60F, DHS-80F, DHS-100F
