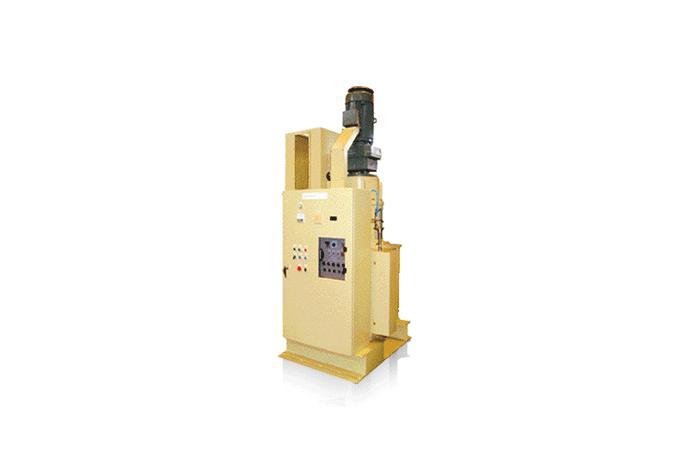

CHAFF EXPANDING SYSTEM
Make husk expanding and softening by processing with high pressure and high temperature.
Make husk expanding and softening by processing with high pressure and high temperature.
- This machine expands internal of husk with compression pressure type
- Compression screw is installed as a vertical and bearing is installed to two ends of shaft so, possible to stable running without rotation bias.
- Main motor power is 22kw and efficiency of power delivery by directly connecting main motor to reducer
- Possible to automatic operation by having automatic control supplying system of water and supplying standard capacity system of material
- This machine is fully enclosed type it makes clean work condition.
- Small dimension of installation: 1350mm x 1560mm
- Apply automatic cleaning system so no need to clean after using machine.
- Possible to start/ stop by one switch and also possible to automatic operation, It reduce operator's work
Specification
| Model | Size(L×W×H,㎜) | Capacity(㎏/hr) | Power(KW) |
|---|---|---|---|
| DPX-30 | 1560×1350×3200 | 800 | 22 |
Installation and large volume packing
Feature of chaff expanding
Chaff structure is hard and difficult to absorption water because skin of chaff is constituted by silicic acid and long and thick stiff hair.
In addition internal structure is arranged carefully and fiber cell in constituted by lignin so very difficult to process
Change chaff structure is needed to be a good absorption and resolvability for recycling chaff, A chaff which is processed by DPX-30 is destroyed internal structure so increased absorption and easy to compost.
Grinding Chaff is floating on the water because only chaff size is small by crashing through high speed rotation, no change internal structure.
But chaff expanding absorbs water and sinks into water.
- Absorb water 6 times than normal chaff
- Clean work condition with no dust
- Low power, High quality, long-term life time
- Reduce operation cost by automation system
- Process chaff with bacteria free
USE of Chaff Expanding
- Soil for rasing of Seeding
- Soil for Cultivation
- Solution of repeated cultivation problem
- Soil improvement
- Control moisture for making food garbage to feed stuff and compost
- Improvement integrated disability of salts
- Soil for raing mushrooms
- Food for cows
- For cultivation flowers
- Raising leafy vegetables, fruits and root vegetables
- For flat of cattle
