Manufacturer
DAEYANG INSTRUMENT
Brand
-
SKU
89730
Product Name

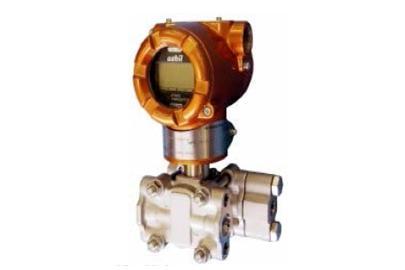

Pressure Sensor
Model Name
-
Size
-
Weight
-
Product Details
| TYPE | MODEL | Measuring Span | Setting Range | Working Pressure Range |
| Absolute Pressure | GTX 30A | 4 ~104kPa A (30 ~ 780mmHg A) |
0 ~ 104kPa A (30 ~ 780mmHg A) |
0.01 ~ 104kPa A (0.1 ~ 780mmHg A) |
| GTX 60A | 35 ~ 3500kPa A (0.35 ~ 35kgf/cm² A) |
0 ~ 3500kPa A (0 ~ 35kgf//cm² A) |
0.01 ~ 3500kPa A (0.1mmHg A ~ 35kgf/cm² A) |
|
| Gauge Pressure | GTX 60G | 35 ~ 3500kPa (0.35 ~ 35kgf/cm²) |
-100 ~ 3500kPa (-1 ~ 35kgf/cm²) |
2.0 ~ 3500kPa (15mmHg A ~35kgf/cm²) |
| GTX 71G | 0.7 ~ 14MPa (7 ~ 140kgf/cm²) |
-0.1 ~ 14MPa (-1 ~ 140kgf/cm²) |
2.0kPa ~ 14MPa (15mmHg A ~ 140kgf/cm²) |
|
| GTX 82G | 0.7 ~ 42MPa (7 ~ 420kgf/cm²) |
-100 ~ 42MPa (-1 ~ 420kgf/cm²) |
2.0kPa ~ 42MPa (15mmHg A ~ 420kgf/cm²) |
|
| Differential Pressure | GTX 30D | 0.75 ~ 100kPa (75 ~ 10160mmH₂O) |
-100 ~ 100kPA (-10160 ~ 10160mmH₂O) |
2.0kPa A ~ 14MPa |
| GTX 40D | 35 ~ 700kPa (0.35 ~ 7kfg/cm²) |
-100 ~ 700kPa (-1 ~ 7kgf/cm²) |
||
| GTX 71D | 0.25 ~ 14MPa (2.5 ~ 140kgf/cm²) |
-100 ~ 14MPa ( -1 ~140kgf/cm²) |
2.0kPa A ~ 14MPa |
ㆍYou can easily select the analog or digital transmission format through the smart field communicator
| TYPE | MODEL | Measuring Span | Setting Range | |
| Absolute Pressure | E1A 310A | M | 1.3 ~ 130kPa A (9.6 ~ 960mmHg A) |
0 ~ 130kPa A (0 ~ 960mmHg A) |
| A | 0.03 ~ 3MPa A (0.03 ~ 30kgf/cm² A) |
0 ~ 3MPa A (0 ~30kgf/cm² A) |
||
| Gauge Pressure | E1A 110A | A | 0.03 ~ 3MPa (0.35 ~ 3kgf/cm²) |
-0.1 ~ 3MPa (-1 ~ 30kgf/cm²) |
| B | 0.14 ~ 14MPa (1.4 ~ 140kgf/cm²) |
0.1~14MPa (-1 ~ 140kgf/cm²) |
||
| Differential Pressure | E1A 110A | M | 1 ~ 100kPa (100 ~ 10000mmH₂O) |
-100 ~ 100kPa (-10000 ~ 10000mmH₂O) |
| H | 5 ~ 500kPa (0.05 ~ 5kgf/cm²) |
-500 ~ 500kPa (-5 ~ 5kgf/cm²) |
||
| V | 0.14 ~ 14MPa (1.4 ~ 140kgf/cm²) |
-0.5 ~ 14MPa (-1 ~ 140kgf/cm²) |
ㆍYou can easily select the analog or digital transmission format through the smart field communicator
