product Image

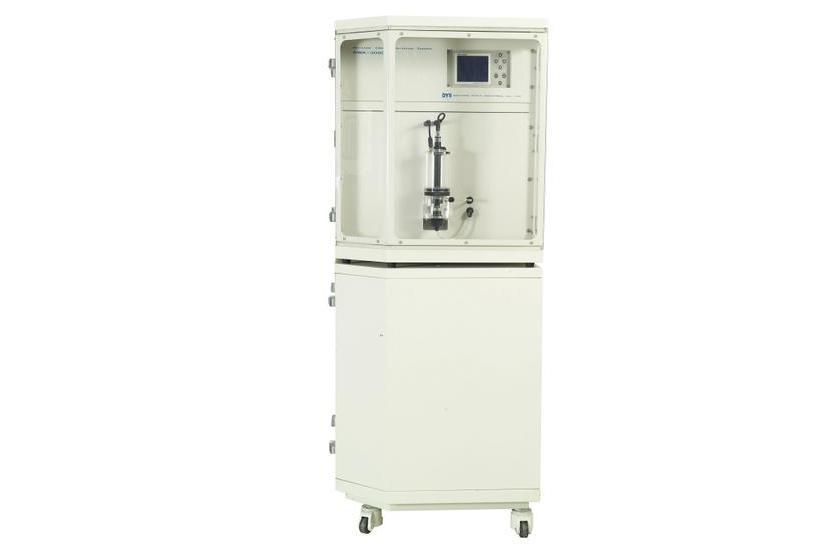

Chloride Analyzer
Model Name
-
Series
Water Environment
Data
온라인 Chloride 분석기
Manufacturer information
provider logo
DAEYOON SCALE INDUSTRY

Water Quality Measuring Equipment, Measuring & Testing Equipment, Home/Industrial Measuring Equipment and more

Problem with product info?
Update request
Manufacturer
DAEYOON SCALE INDUSTRY
Brand
-
SKU
91165
Product Name
Chloride Analyzer
Model Name
-
Size
-
Weight
-
Product Details

간단한 파라메타 및 한글디스플레이 구조로 보다 쉽고 편리하게 사용 및 관리를 할 수 있으며, 설치방식이 간단하여 누구나 손쉽게 설치운영이 가능합니다.

또한 4-20mA, RS-232, RS485통신 등 필수기능을 내장하였으며, High, Low 접점출력을 사용하여 공정제어에 용이 할 수 있도록 설계되었습니다.

당사의 DWA series 염소이온 농도계는 다양한 외함 크기와 기능으로 구성되어 현장에 적합한 모델을 선별하여 사용할 수 있도록 구성되었습니다.



제품특징

Chloride 측정시스템 - 자동 시약보충/ 자동교정/ 자동세척

0-10%, Cl-측정 / Cl-측정치 환산을 통한 NaCl측정치 지시[2가지 mode]

4-20mA, RS-232, RS-485통신[지시치,온도 Dual출력]

4접점 출력(HH,H,L,LL 선택성) & 세정접점출력

그래픽LCD탑재, TREND그래프 표시, 한글 Display

판넬 자립형 구조/ 내부액 및 교정액 판넬 내 포함.

ppm, % 등 단위변환 가능 구조
