Manufacturer of Industrial, Agricultural & Construction Pump
-Discharge amount (m3/min)Max. 120㎥/m
-Total pump head (m):Max. 170m
-Temperature (℃) :105℃
-Number of rotations (RPM) :880, 1160, 1750rpm
-Caliber (mm) :80 ~ 600 mm

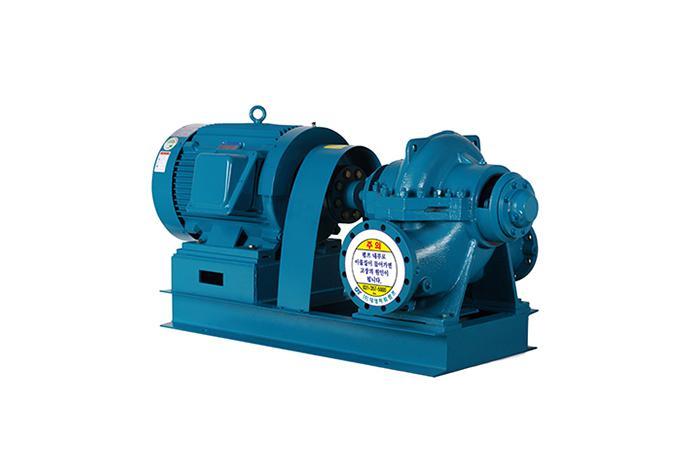

- The pump with suction mouths at the two sides of the impeller is called the two-suction pump, and is used at placed with high flow.
- There are not two suction connections, but there is one large suction mouth connected at the two sides of the impeller.
- For water and sewage, general industry and pumping
- Circulation in large buildings
- Has outstanding suction function, enabling stable drive, with various flow functions.
- Much flow could be transported, and due to separation of the higher and lower parts, maintenance and repair are useful.
