product Image

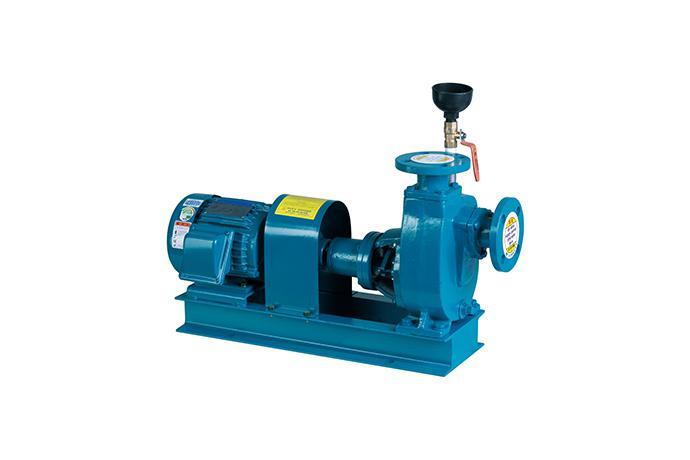

Self–Priming Pump
Model Name
DSP
Series
Circulation and General Pumping Pump
Data
DSP Self–Priming Pump
Manufacturer information
provider logo
DAEYOUNG POWER PUMP

Manufacturer of Industrial, Agricultural & Construction Pump

Problem with product info?
Update request
Manufacturer
DAEYOUNG POWER PUMP
Brand
-
SKU
31695
Product Name
Self–Priming Pump
Model Name
DSP
Size
-
Weight
-
Product Details

-Discharge amount (m3/min)0.07 ~ 3㎥/m
-Total pump head (m):7 ~ 21m
-Temperature (℃) :Max. 90℃
-Number of rotations (RPM) :1450, 1750rpm (4 Pole)
-Caliber (mm) :40 ~ 150mm



- There is a part storing water within the casing, and by maintaining the water level to the suction mouth, the pump first works as a vacuum pump, and after removing air completely, the pump continues storage pumping.

- Even if operation is stopped for a long time, priming could be conducted automatically to absorb and discharge again.


- For pumping of buildings and drainage of construction work.

- For water supply, agricultural irrigation and drainage

- For drainage of septic tank, basements and manholes

- For food chemicals and general industrial work


- No need for foot valve

- Even if the water within the piping was to flow into the well (under the pipe) due to the breakage of the check valve, the water within the pump casing allow self-suction

- The rotation of the pump is conveyed fully to lift water with strong power

- The pump outlet is large in amount and power is spent in small quantities

- The structure is simple that disassembling and assembling is easy and sturdy

DAEYOUNG POWER PUMP
Manufacturer of Industrial, Agricultural & Construction Pump
DAEYOUNG POWER PUMP Co., Ltd. is a pump company concentrating on only pumps from 1969, placing itself firmly in the Korea pump industry. Our company produces high-quality products based on the passion and efforts of our workers, having certifications of NEP, outstanding product, high-efficiency certification, ISO, KS, and KS. However, our efforts to produce environment, energy and people-oriented products will continue. The reason that DAEYOUNG POWER PUMP Co., Ltd. was able to become the pump company representing South Korea was because of the devoted and continuous efforts of the 60 agent company presidents. All of the management and workers of our company considers the prime goal as ‘customer value creation based on customer impression’, and we will think of the customers first and put in the best efforts to grow with you. By listening to the opinions of customers and reflecting them into our products, we will provide quick provision and accurate repairs to be DAEYOUNG POWER PUMP Co., Ltd. near you.
