Manufacturer of Industrial, Agricultural & Construction Pump
-Discharge amount (m3/min)0.02 ~ 3.0ใฅ/m
-Total pump head (m):10 ~ 175m
-Temperature (โ) :Max. 95โ
-Number of rotations (RPM) :1450, 1750rpm (4 Pole)
-Caliber (mm) :25 ~ 80 mmย
ย

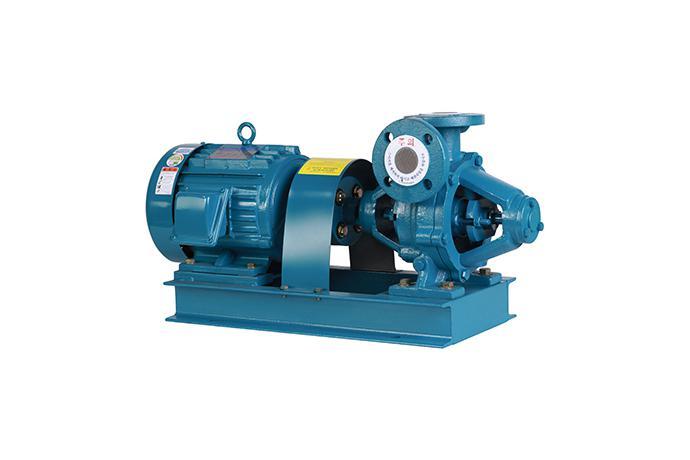

- Wesco Pump is also called โboiler feed water pumpโ and is divided into casing formed from suction discharge, casing cover, impeller and bearing housing.ย
- This pump has no extraction stress at all, and has high pump life that the product is highly detailed.
- The liquid flowing into the channel from the suction mouth is accelerated at the bucket of the rotator, and is delivered through the channel of the picture due to the conveying power. ย
- The flow of the liquid within the bucket of the rotator is as the figure, and this process is increased in energy for each cycle until the liquid is delivered.ย
- If the above procedure is repeated several times, this flow is smooth and continuous.
- For providing water to boiler, and for high-pressure washer steam cleaningย
- Assistance of firefighting facilities and cooling water circulationย
- For manufacture industry process, solvent
- Rotator (BC) designed according to the number of tons used by boilerย
- The motor horsepower is decided according to the boiler usage pressure (kg/ใ )ย
- Water supply to a maximum of 90~95โย
- Installation, examination and repairs are useful due to its small size
