Product Name

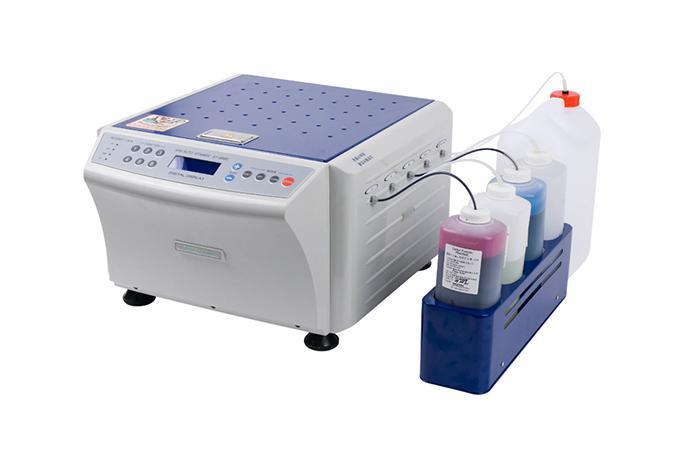

Auto Strainer, Ziehl-Neelsen
Model Name
AT-2000Z
Size
-
Weight
-
Product Details
| AT-2000Z AFB Ziehl-Neelsen Stainer | |
| Slide Try Capacity | 1 slide ~10 slides(1 to 20 slides by adding Optional Tray) |
| Tray Rotation Speed | Approx, 200RPM |
| Display | 4 Line by 20 character alpha-numeric LCD dot-matrix |
| Key Button Controls | 6 Mode Key(Stain, Prime, Clean, Dry,Reset, Slide up/down) 6 Function selection |
| Used Reagent / Consumption(Typical) | Carbol Fuchsin / Acid Alcohol / Methylene blue 1.2ml ~ 1.8ml |
| 1 Cycle Stain time(Typical) | 10 slides : 13 min. / 20 slides: 18 min.(Option) |
| Dimensions | 480(W) x 445(D) x 265(H)mm. Clearance Height(Lid open): Max. 565mm |
| Weight | Approx. 17 kgs |
| Electrical Requirements | 100~240VAC~(Auto selection)@50 to 60 Hz |
| Power Consumption | Max.50 Watts, 800 Watts(AT-2000Z, Heating) |
| Drain Connection | Nipple on rear Panel |
| Safety | Lid interlock : Lid must be closed, and is locked down during operation |
| Standard Accessies | 1L Reagent Bottle(1set), 5L Water bottle(1), Reagent Container(1) Reagent Container cable(1), Power cord(1), Drain hose(1) Reagent connection Tube(1 set), User's manual(1) Quick installation and user's guide(1), Spare fuse(1), Carbon filer(5) |
| Optional Accessaries | Additional slide for 10 slides |
