DELECROIX Harversting Belt
Model Name
TDSH 70
Series
Harversting Belts / Conveyors
Data
Catalog-Delecroix Harversting-Harversting Belt
Manufacturer information
provider logo
DELECROIX HARVESTING

Haversting Equipment Manufacturer, Agricultural, Harvesting Belts, Vegetable Trailers, Floretting Machine and more

Problem with product info?
Update request
Manufacturer
DELECROIX HARVESTING
Brand
-
SKU
138018
Product Name
DELECROIX Harversting Belt
Model Name
TDSH 70, TDTH 80, TDTH 90, TDTH 110, TDTH 120
Size
-
Weight
-
Product Details

Range of modular band harvesting belts (drive by pinions), adapted to the needs of the harvester.

  • Up to 12.00m useful length
  • Complementary belt to the Delecroix or La Bretonne trailer
  • Versatile , robust and functional harvesting belt with a large capacity to increase productivity
  • Simplified harvest


RANGE

TYPES TDSH 70 TDTH 80 TDTH 90 TDTH 110 TDTH 120
Useful length 7.50 m 8.00 m 9.00 m 11.00 m 12.00 m
Number of aluminum boxes 2 + extension
sliding
2 + extension
sliding
3 4 + extension
sliding
4 + extension
sliding
Number of aluminum boxes
hydraulic unfolding
1 2 2 2 2
Number of aluminum boxes
manual unfolding (excluding extension)
1 0 1 2 2


STANDARD EQUIPMENT

Frame and first steel box
Aluminum monohull housings
Sliding carriage for adjusting the working height
Cap 0.75 m (interior trailer reception area)

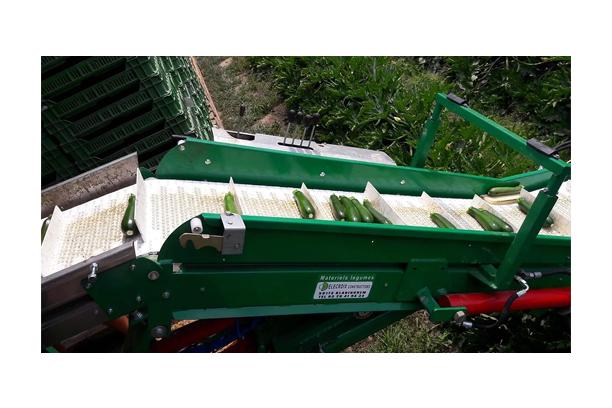

Modular polypropylene band 400 mm wide; reinforced edge modules
Cleats 75 mm high, at 380 mm intervals
Driven by 4 double-tooth pinions
Hydraulic motorization with variable speed drive on distributor
Conveyor stop by photoelectric detector
Choice of: conveyor outlet side and position of controls (front / rear)


OPTIONS

Wrapping table 3 or 4 boxes (with or without rollers), parallel or perpendicular to the belt
Hydraulic displacement in the trailer: external rollers in rail or on the edge of the platform
Pass-through frame for passage over pallets
Cap 1.00 m
TDTH 90: sliding extension for useful length 10.00 m

No custom cleats

Hydro-electric reel: passage through central rail or roof

Kit for crating along the belt

Salad sprinkler kit (aluminum tank under the floor of the trailer)
Step
Pivot for right or left outlet
Epoxy paint (primer)
TDSH70: 2nd hydraulic box
TDTH90 / 110/120: 3rd hydraulic box
Platform mounted on a 3-point system (with hitch for platform)

In addition to this, you will need to know more about it.
