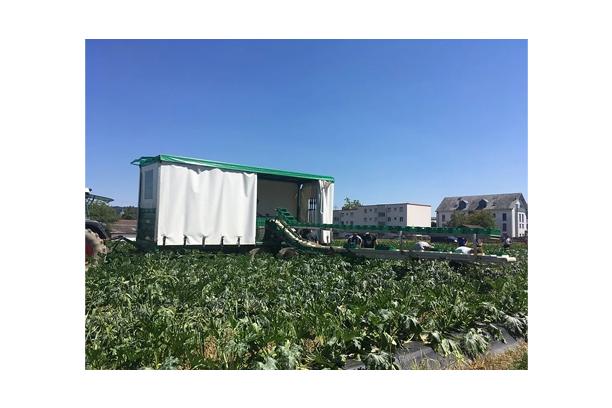

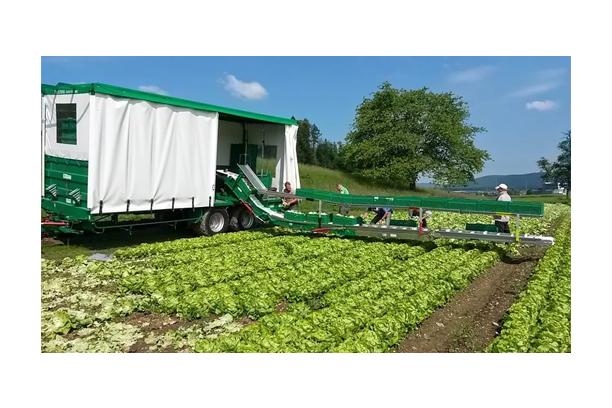

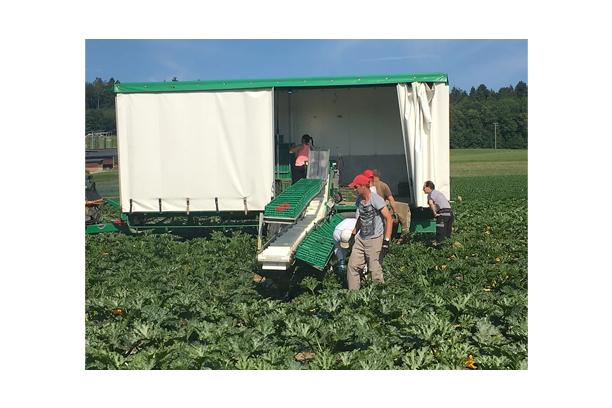

Range of sheeted vegetable trailers adapted to the needs of the harvester.
RANGE
LENGTH | WIDTH | NUMBER OF AXLES | PTAC | PAYLOAD | STANDARD WHEELS | FRAME |
---|---|---|---|---|---|---|
7.40m | 2.50m | 2 | 15,600 | 11,000 | 400 / 60-22.5 | 250x100-6 |
8.40m | 2.50m | 2 | 15,600 | 11,000 | 400 / 60-22.5 | 300x100-6 |
9.40m | 2.50m | 2 | 20,000 | 15,000 | 500 / 45-22.5 | 300x100-6 |
10.40m | 2.50m | 2 or 3 | 20,000 | 15,000 | 500 / 45-22.5 | 300x100-6 |
11 or 12m | 3.00m | 3 | 22,500 | 16,000 | 500 / 60-22.5 | 300x100-6 |
STANDARD EQUIPMENT
Fixed bar, fixed crutch Fixed axles Central and outer rails (UPN80) 900 gr tarpaulin with double tarpaulin roof, front hoops Side bars step, storage box
OPTIONS
Covering: side curtains in 2 parts and roof with insulation |
Hydraulic stand or crank |

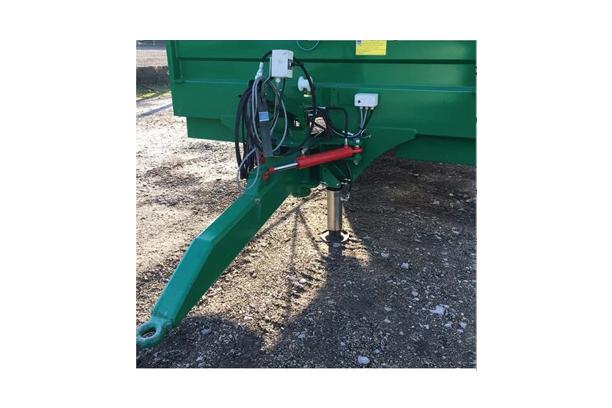

Hydraulic boom: 1 or 2 cylinders |
Spring or hydraulic suspension boom (front or rear) |
Hydraulic tailgate |
Axles: Bogie, tandem, trailing or steering axles (crabbing) |
Drive axle: 1 powered axle |
Extension 2 beams at the back |
Non-slip floor |
Sprinkling kit for salads on harvesting belt with aluminum tank (1200 or 2500 l, depending on model) |
Rail drilled in the roof for tension bars (load safety) |
Possibility of single trays without tarpaulin |
3 m wide trailers with interior fittings for packaging automation |
Hydro-electric reel integration for carpet in central rail or roof |
