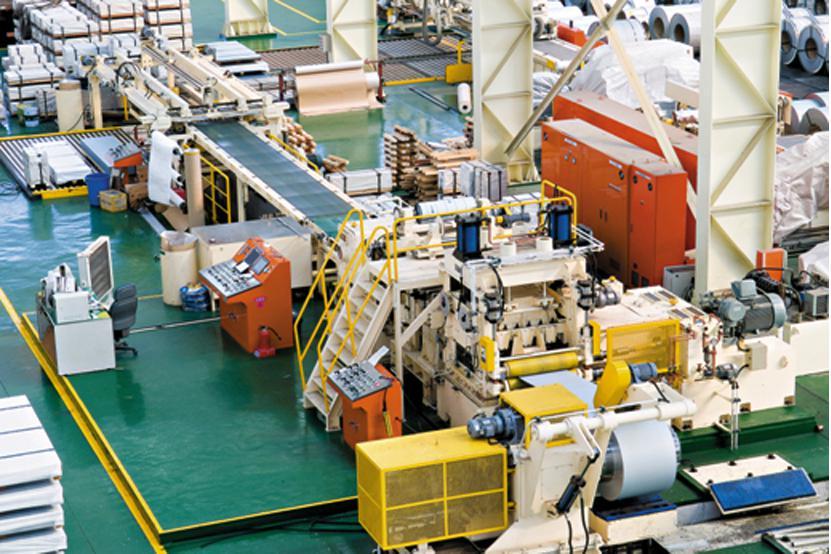

product Image
Cut to Length Line
Model Name
-
Data
-
Manufacturer information
provider logo
DHIM

Steel processing equipment manufacturer, Shear line, Slitter line, Continuous processing line, Painting line and more

Problem with product info?
Update request
Manufacturer
DHIM
Brand
-
SKU
64573
Product Name
Cut to Length Line
Model Name
-
Size
-
Weight
-
Product Details

dhim Cut to Length Line For cutting narrow coils from main coils.

0.15 ~ 3.2mmt x 1830mmw x 30ton x 300mpm
 1.2 ~ 16mmt x 2400mmw x 40ton x 150mpm

Totally computer-controlled with diagnosis, automated coil Feeder system and Quality control

For carbon steel, exposed and non-exposed material, stainless steel, Pre-painted steel, aluminum and other materials

dhim Cut To Length Line Advantages
- Cassette and Noncassette types
- Precision bearing shaft alignment and stands alignment
- A precision machine tool for correcting leveling of flat rolled strip or sheets
- 6-high leveling Very good evenness of sheets by using 6-high leveling machines
- Operation Available Even for One person both control
- High Productivity

DHIM Cut to Length Line

#575  MINI ROTARY SHEAR LINE

          (0.25-2.0mmT x 800mmW x 12 ton x 80m/min)

1. INPUT MATERIAL

Material AISI 300 & 400 Stainless steel sheet in coil.

Color-treated & Galvanize-treated steel

sheet in coil.

Silicon steel sheet in coil

Tensile strength Max. 80kg/mm2

Yield strength Max. 40kg/mm2

Shearing strength Max. 56kg/mm2

Thickness of Strip Stainless : 0.25mmT ~ 2.0mmT

Color & Galvanize : 0.25mmT ~ 1.2mmT

Silicon : 0.25(0.2)mmT~ 1.0mmT

母卷厚度 不?? : 0.25mmT ~ 2.0mmT

彩?板&??板 : 0.25mmT ~ 1.2mmT

Silicon : 0.25(0.2)mmT~ 1.0mmT

Width of strip 100 ~ 800mmW

Stainless 800mmW

Color & Galvanize 800mmW

Silicon 800mmW

?卷?度 100 ~ 800mmW

100 ~ 800mmW

Coil weight Max. 12,000kg

母卷重量 最大. 12,000kg

Coil inside diameter 508mm, 610mm

2. PRODUCT

Line speed Max. 80 m/min

Shearing capacity Max. 200 cuts/min at any thickness

Length of cut sheets 150 ? 3,000 mm

生??速度 最大. 80 m/min

剪切能力 最大. 200?/每分? (在任何厚度下)

?品?度 150 ? 3,000 mm

No. of piler 2 sets of piler

Piling length No.1 piler = 150 ? 3,000mm

No.2 piler = 500 ? 3,000mm

Piling height Max. 500mm (including pallet)

Piling sheet weight No.1 piler = 2,000kg (Max.)

No.2 piler = 2,000kg (Max.)

堆?机 2套堆?机形式

堆??度 一?堆?机 = 150 ? 3,000mm

二?堆?机 = 500 ? 3,000mm

堆?高度 最大.500mm (包括托?)

堆??品重量 一?堆?机 = 2,000kg (最大.)

二?堆?机 = 2,000kg (最大.)



DHIM Cut to Length Line  1



DHIM Cut to Length Line  2

Steel processing equipment manufacturer, Shear line, Slitter line, Continuous processing line, Painting line and more
DAEHWA INDUSTRIAL MACHINERY Co., Ltd. has grown and developed into a leader in the steel processing equipment manufacturing sector through continued technology innovation since its foundation in 1985. Our main production items are cold-rolled and hot-rolled steel sheet Shear Line (Cut to Length Line), Slitter Line, Blanking Line, Forming Line, Continuous Processing Line such as domestic and international steel company in the equipment supply it has, steel processing machinery industry in the continued active management and market development for over 30 years domestic and abroad market and gain a competitive edgeby becoming a global company in the global steel industry. Through Continuous research and development and perfect quality management and intensive technical service and park-like plant, gallery-like offices, clubhouse-like conference rooms comfortable working environment, "dhim" a cross of a global brand will offer the best quality and service growth and simultaneously, We will do our best always vigorously with all employees to become a company that leap. Meanwhile, despite the rapidly changing economic conditions and only thanks to the customers who entrust us to believe one of the technology, Hope and pray you always full of luck in your business management customers.
