Cold Drawn Bar

Model Name

Series

CD-Bar

Data

Manufacturer information

C.H.Q Wire, Bar

Inquiry

Problem with product info?

Update request

Manufacturer

dhSteel

Brand

SKU

117965

Product Name

Cold Drawn Bar

Model Name

Size

Weight

Product Details

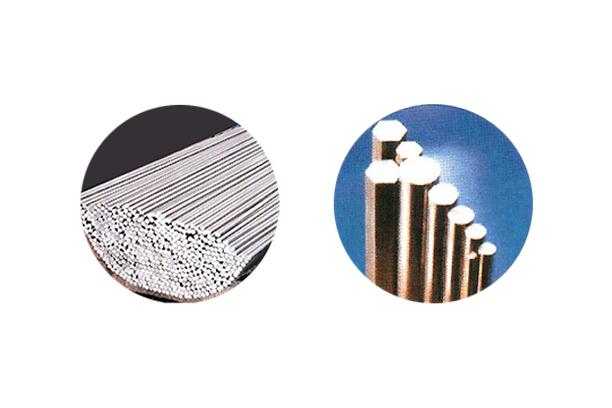

A Wire Rod product processed by drawing, cutting and correction treatment, which requires attractive surface and precision processability.

Types and Specs

Description		Tensile Strength (kgf/mm²)	Hardness(HRB)	Remarks
Rolled steel for general structure		45 over	70 over	SS330, SS400, SS490, SS540
Carbon steel for Machinery structure	~S25C	50 over	75 over	S10C, S12C, S15C, S17C, S20C, S25C
Carbon steel for Machinery structure	30C~	60 over	85 over	S30C, S35C, S38C, S40C, S45C(S)
Free-cutting steel		45 over	70 over	SUM21, SUM22, SUM24L, SUM31
Alloy steel	non-heat treated	58 over	80 over	SCr415, SCM415, SUM31
Alloy steel	heat treated	60 over	85 over	SCr435, SCM440, AISI4140
Spring steel		70 over	90 over	SUP 7, 9, 10, 12, SAE9254, 500CrV4
Bearing steel		70 over	90 over	SUJ 1, 2, 3, 4, 5
Stainless steel	304affiliate	55 over	85 over	STS 304M, 304HC, 304CS, 304L, T304
	316affiliate	55 over	85 over	STS 316, 316L, T316, T316L
	303affiliate	65 over	90 over	STS 303, 303F, 303C, T303, T303F
	400affiliate	60 over	87 over	STS 410, 416, 420J2, 420F
