product Image

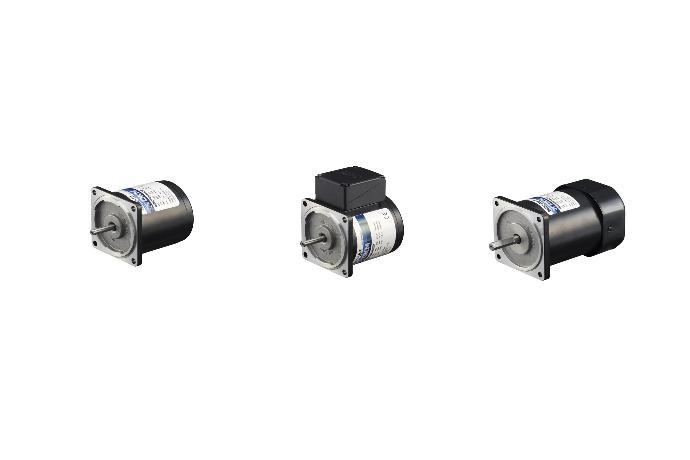

2 Pole Motor
Model Name
-
Series
AC Small Geared Motor & Gearhead
Data
-
Manufacturer information
provider logo
DKM MOTOR

Motor manufacturer, Small, Geared, Servo, DC motor, Small reducer

Problem with product info?
Update request
Manufacturer
DKM MOTOR
Brand
-
SKU
51743
Product Name
2 Pole Motor
Model Name
-
Size
-
Weight
-
Product Details

2 Pole Motor
- High speed rotation
- 3,600 RPM (60Hz)
- 3,000 RPM (50Hz)
- Used without gearhead
- Possible for reverse rotation



Suitable for Uni-directional Continuous Operation
Induction motors are for uni-directional continuous operation such as conveyor belt system.

Meet Safety Standards and Global Power Supply Voltages
The most parts of models conform to CE and CCC marking. And They meet power supply voltage of North America, Asia and Europe.

Single Phase Run
For a single phase motor run, please use the condenser complying with the capacity of that motor.
For a single-phase induction motor, it is not possible to reverse the direction within a short time during operation.
So stop the motor first and change the direction next.

Three Phase Run
Three phase induction motor has relative higher starting torque comparing single phase and has high reliability because it can be operated by a three-phase power source directly.

※It is not possible to use inverter for three phase 380~440V motor. When inverter is used, the insulation of winding coil becomes hot and may cause damage to the motor.



DKM Motors 2 Pole Motor

DKM MOTOR
Motor manufacturer, Small, Geared, Servo, DC motor, Small reducer
The last 28 years was the history of the experiences covered with lots of difficulties and crisis as well as the history of indomitable will and challenge spirit against impossible things. Based on the accumulated technical capability and knowhow, DKM became now a leading company in the field of motor. We believe that your trust and attention made these performances possible. Now DKM stands on the stage of world over the fence of Korea for new challenge once again. Our product with management philosophy to deliver the trust and value to the customers all over the world was acknowledged in overseas markets such as China, South-East Asia and Europe for its quality and service. DKM will accelerate to be a global leading company through continuous research and challenge. The power which moves the world, DKM is in its center. And we will keep in our mind that there are our customers in the center of DKM. Hereafter please keep your eyes on DKM who will solidify the status of the best partner in overall industry. We hope to get a continued support and cooperation from you.
Inquiry
