P.M Motor
Model Name
MINI DRIVE
Series
DC MOTOR CONTROLLER
Data
-
Manufacturer information
provider logo
DMCS

AC, DC, Motor, Controller, Sensor, Meter, AGV, BDI, LVDT, Measuring instrument and more

Problem with product info?
Update request
Manufacturer
DMCS
Brand
-
SKU
129976
Product Name
P.M Motor
Model Name
MINI DRIVE
Size
-
Weight
-
Product Details

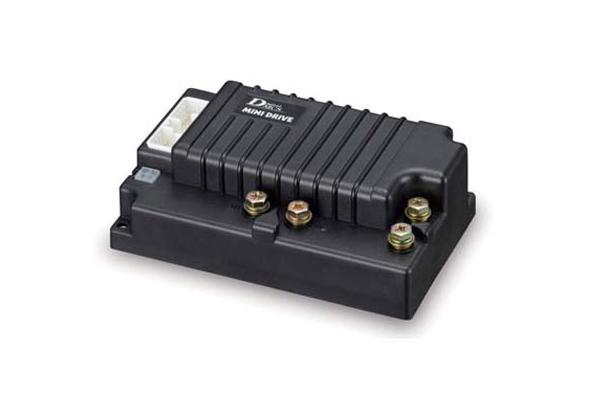

P.M Motor

Model : MINI DRIVE (162×98×51.5mm)







Features and Benefits

- Electric braking system according to the accelerator

- Lamp display in the event of an error

- ack Horn output when back

- BDI (battery remaining capacity) output (0 ~ 5V)

- Electric brake control output

- Electric brake control output

- Flexible program customization- It enables it to customize the program according to user-specific functions and use environment







Specifications

Model name MINI 250S/200S MINI 110S/MINI60S
Battery voltage 12V~48V
Current limit value 250A/ 200A 110A/60A
Operating temperature -30℃~80℃
Weight 1.3Kg 0.8Kg
Switching frequency 20KHz
Length x Width x Height(mm) 188×120×70 162×98×51.5







Applications

- Electric carriers for farming

- Industrial electric car

- Electric wheelchair, electric scooter

- Table lift

- Electric ATV, Electric bumper car

- Unmanned carrier (A.G.V), Bogie

- Feeding system

- Yakurt cart

- Children's train
