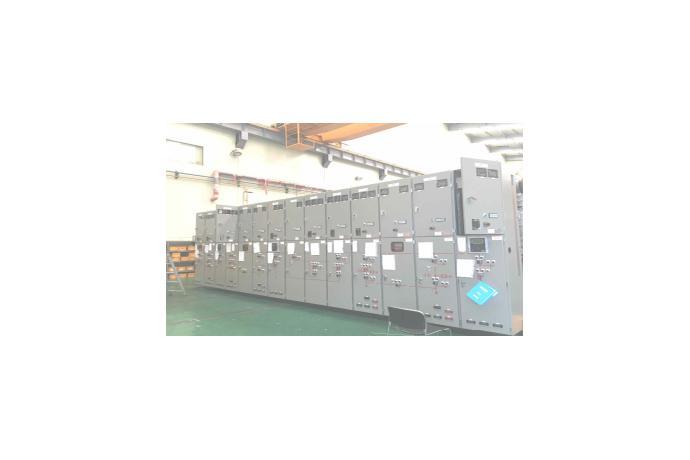

29kV Gas Insulated Switchgear
Model Name
-
Series
Switchgear
Data
-
Manufacturer information
provider logo
DONGNAM

Nonferrous metal casting and electrical equipment, Fitting, Filling machine, Aluminum for gas reduction switching device and more

Problem with product info?
Update request
Manufacturer
DONGNAM
Brand
-
SKU
55874
Product Name
29kV Gas Insulated Switchgear
Model Name
-
Size
-
Weight
-
Product Details

DONGNAM 29kV Gas Insulated Switchgear

Product Specification

Name of Product

29kV Gas Insulated Switchgear (GIS)

Rated Voltage(kV)

29

Applied Standard GIS

IEC 62271-200, KRSA

CB

IEC 62505-1, IEC 62271-100

Rated Current(A)

630 / 2000

Rated Breaking Current(kA)

20

Power Frequency Withstand Voltage(kV) /
Disconnector with Surge Protection Gap

95 / 110

Lightening Impulse Withstand Voltage(kV) /
Disconnector with Surge Protection Gap

200 / 220

Rated SF6 GAS Pressure
(Mpa.G)

at cutoff part

0.2

et cetera

0.2

Circuit Breaker's Service Classification (Class)

E1, C2, M2

Control Method

circuit breaker

Electric Spring Operation Method

disconnector

Electric Operation Method

earthing switch

Manual Operation Method

DONGNAM
Nonferrous metal casting and electrical equipment, Fitting, Filling machine, Aluminum for gas reduction switching device and more
Since DONGNAM was founded in 1984 as a specialized manufacturer of non-ferrous metal casting and electrical equipment, we have leaded the hardware industry of transmission, substation and distribution, and optical communication line system which are one of infrastructure in Korea. In the early 1990s, we started to develop the aluminum enclosures for gas insulated switchgear (GIS) and the conductors which require the top grade of casting technology. Furthermore, we acquired the exclusive and the world-class technology in which all of our efforts are concentrated in this field. Currently, our products have been supplied to the gigantic manufacturers of heavy electrical equipment domestically and internationally. We are proud of our products quality which is highly popular among those customers. We have produced 25.8kV, 72.5kV, 170kV GIS, succeeded in developing 29kV GIS recently and contributed to a part of the electric power industry in Korea. Simultaneously, the vigorous sales activities have been performed with the highly updated production facility and the excellent quality management based on the accumulated technology. In the future, we would continuously do our best to lead the electric equipment industry with the technical improvement and the global marketing, and strongly promise to contribute to the advance of the customers with technology and quality. We hope that you could love and trust us without any change.
