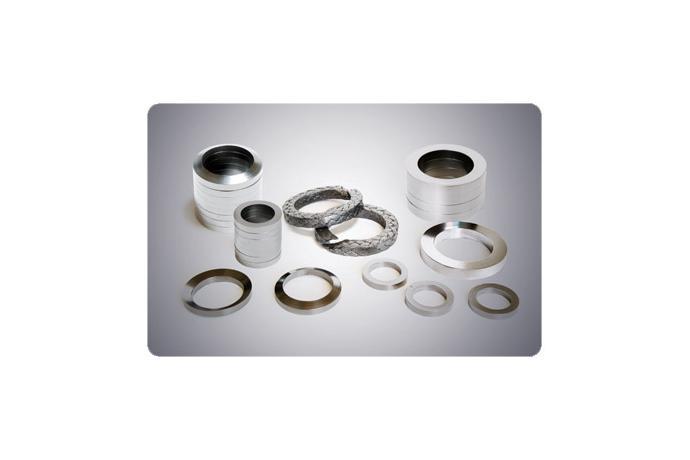

ALS300 Graphite Tape Packing is the packing that compressed and molded in a certain dimension for easy installation.
The graphite's self-lubrication capability and low coefficient of friction allow to use in a wide range without giving damage on the reciprocating and rotary shaft.
If you want to disassemble only gland without disassembling pump and valve, you can just cut it and deliver.
You can get better sealing effects if you use with ALS910C, ALS900G and ALS955W depending on the use purpose.
Pressure | 4600psi (317bar) |
Chemical Resistance | pH 0 -14 |
Temperature | From -400℉(-240℃) to 800℉(430℃) in air From -400℉(-240℃) to 5400℉(3000℃) in non oxidizing From -400℉(-240℃) to 800℉(650℃) in steam |
