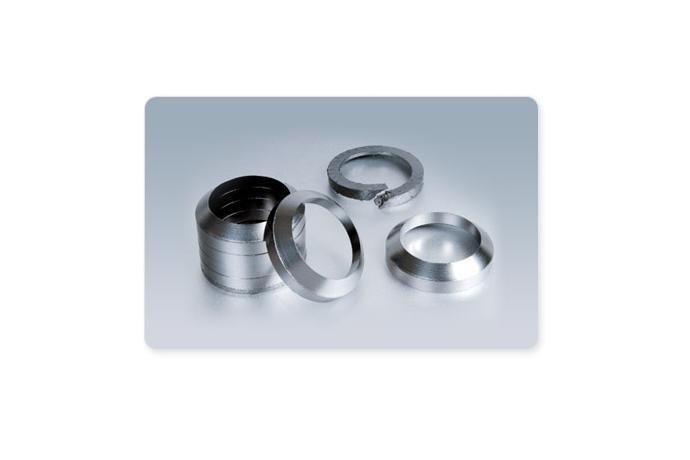

Since the graphite molding packing was produced at a certain angle it can get outstanding sealing effect thanks to the low tightening torgue load when assembling and coupling by gland.
The high density graphite molding packing in the upper and lower part will prevent the low density graphite from crack and crushing by rotary and reciprocating.
It guarantees better sealing effects if you use ALS910C and ALS900G depending on the use purpose as end ring.
Service : For use pumps and valves, high temperature and pressure stem valves, soot blower, control valves.
Pressure | 4600psi (317bar) |
Chemical Resistance | pH 0 -14 |
Temperature | From -400℉(-240℃) to 800℉(430℃) in air From -400℉(-240℃) to 5400℉(3000℃) in non oxidizing From -400℉(-240℃) to 800℉(650℃) in steam |
