Vacuum Injection M/C for Rubber

TOP

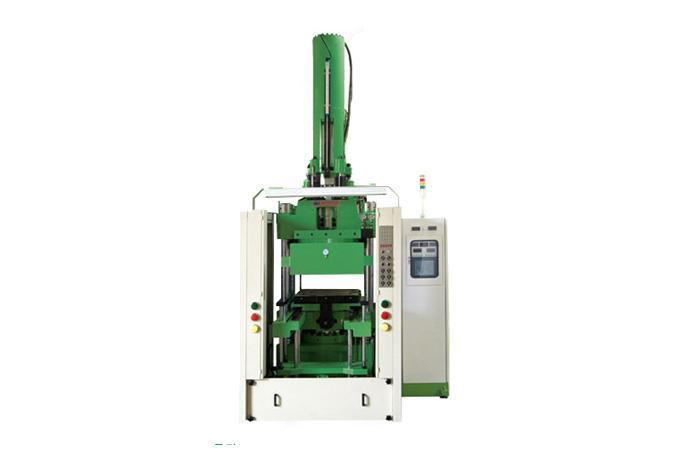

Vacuum Injection M/C for Rubber

Model Name

DSVIM-Series

Series

Products

View AllView All Series

Data

Manufacturer information

DONGSUNG Hydraulic

Rubber molding machine manufacturer, Silicon injection molding machine, Vacuum press and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

DONGSUNG Hydraulic

Brand

SKU

4509

Product Name

Vacuum Injection M/C for Rubber

Model Name

DSVIM-Series

Size

Weight

Product Details

Feature

- We can produce the high quality products eliminating the air and gas within product by forcing into absorbing and discharging them by means of vacuum pump in the state closed by vacuum chamber.

- Hydraulic system can control even the pressure and speed of each working part with selection of the

- The pressure-add setting can be divided into 1st, 2nd, and 3rd stage by operator using the pressure sensor.

- With respect to shape and control of injection distance, it can fix exactly the distance using the potentiometer.

- As to the injection distance, according to the characteristics of rubber, as it can divide the pressure and speed into 1st, 2nd, 3rd, and inject, when injecting, it can inject smoothly the raw material to mold.

- For electricity control mode, operator can adjust easily all controls of machine including temperature control of machine and trouble etc. with selection of touch screen. electronic proportion control system.

Specifications

Specifications			Model
Specifications			DSVIM- 150	DSVIM- 250	DSVIM- 300	DSVIM- 450	DSVIM- 650	DSVIM- 1000
Clamping Force		ton	150	250	350	450	650	1000
Clamping System		ton	직압식 / HY.D-RAM
Injection Volume	ST’D	cc	500~ 1000	1000~ 2000	2000~ 3000	4000~ 6000	7000~ 10000	10000~ 16000
Injection Pressure(Max.)		kgf/cm2	1600 ~ 2000
Screw Diameter		mm	40	50	50	60	60	70
Screw R.P.M		rpm	0 ~ 120
Heating Plate	ST’D	mm	500×500	600×600	650×650	700×800	900×800	1200×1000
Day-Light		mm	550	600	700	800	900	1000
Clamping Stroke		mm	450	500	500	550	650	750
Min Mold Thickness		min.	100	100	100	150	250	250
Heating Plate Capacity		kW	12	15	18	28	38	46
Moter Power		kW	11	11	15	15	22	30
Vacuum Moter Power		kW	3	3	3.7	5.5	5.5	11
Total Electric Power		kW	33	35	43	60	76	105
Overall Dimension		m	1.7×2.5×3.5	2×2.5×3.7	2.0×2.7×4.2	2.5×3×4.5	2.7×3×5.5	4.2×5.5×6
Machine Weight		ton	8	10	12	22	27	54

NOTE .

These specifications can be changed without any previous notice for improvement of product quality.
These specifications are for 1 machines/1 set.
It’s possible to manufacture according to the specifications, demanded by customer.
