product Image
Rotary Vane Vacuum Pumps
Model Name
MVO-400
Series
MVO Series
Data
Rotary Vane Vacuum Pump
Manufacturer information
provider logo
DOOVAC

Vacuum pump manufacturer, Industrial pump, Medical suction, Tank type vacuum pump and more

Problem with product info?
Update request
Manufacturer
DOOVAC
Brand
-
SKU
134374
Product Name
Rotary Vane Vacuum Pumps
Model Name
MVO-400, MVO-630
Size
-
Weight
-
Product Details

Technical Specifications



Technical Data MVO-400 MVO-630
Nominal Displacement 50Hz m3/hr 400 630
Nominal Displacement 60Hz m3/hr 480 760
Ultimate Pressure A mbar 0.5 0.5
Ultimate Pressure C mbar 20 20
Motor Version-3 50Hz V 230/400 230/400
Motor Version-1 50Hz V 220/380 220/380
Nominal Motor Rating 50Hz kW 11 15
Nominal Motor Rating 60Hz kW 15 18.5
Nominal Motor Speed 50Hz min-1 1000 1000
Nominal Motor Speed 60Hz min-1 1200 1200
Sound Level 50Hz dB(A) 70 72
Sound Level 60Hz dB(A) 72 74
Water Vapour Tolerance Max - mbar 40 40
Water Vapour Capacity - ℓ/h 19 30
Operating Temperature Ambient - °C 40 40
Oil Filling - liter 13 15
Weight Appox - kg 550 670

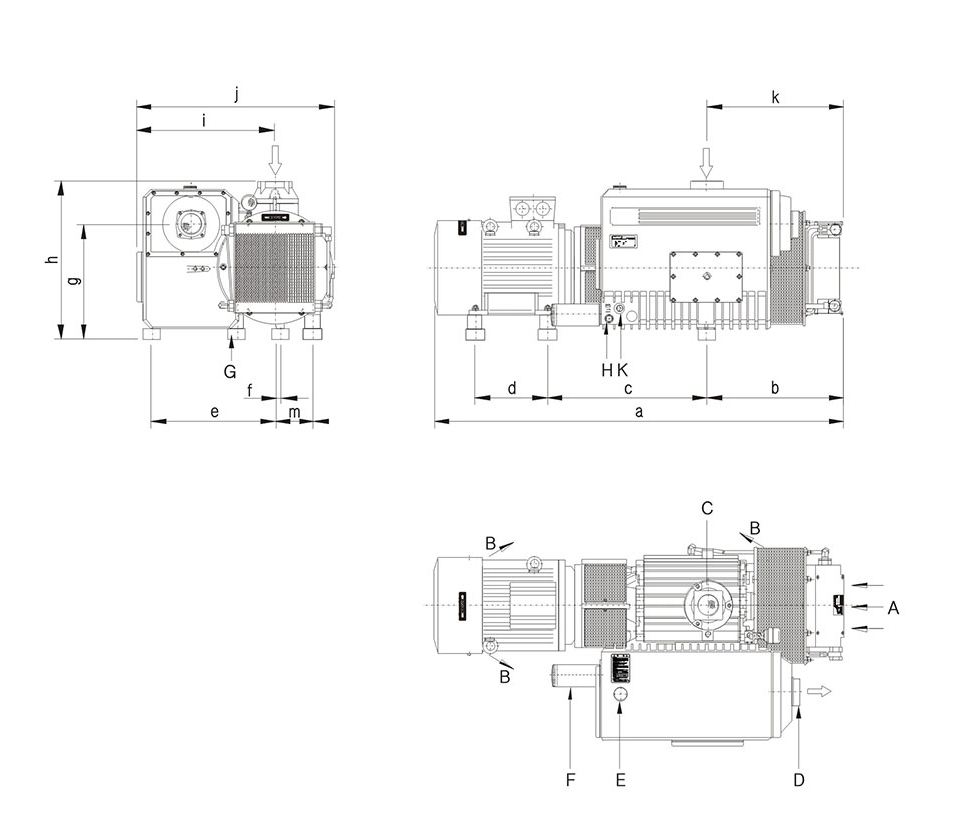

Product Dimension

A Cooling air entry

PT 3"/ NPT 3"

PT 3" / NPT 3"



6-M12 (DP 10)

B Cooling air exit
C Intel flange
D Exhaust port
E Oil Filling plug
F Oil filter
G Rubber foot
H Oil drain plug
K Oil sight glass



Model a b c d e f g h i j k m
MVO-400-DA 1546 575 533 279 518 21 485 668 580 832 575 139
MVO-630-DA 1724 575 672 305 518 21 485 668 580 832 575 159

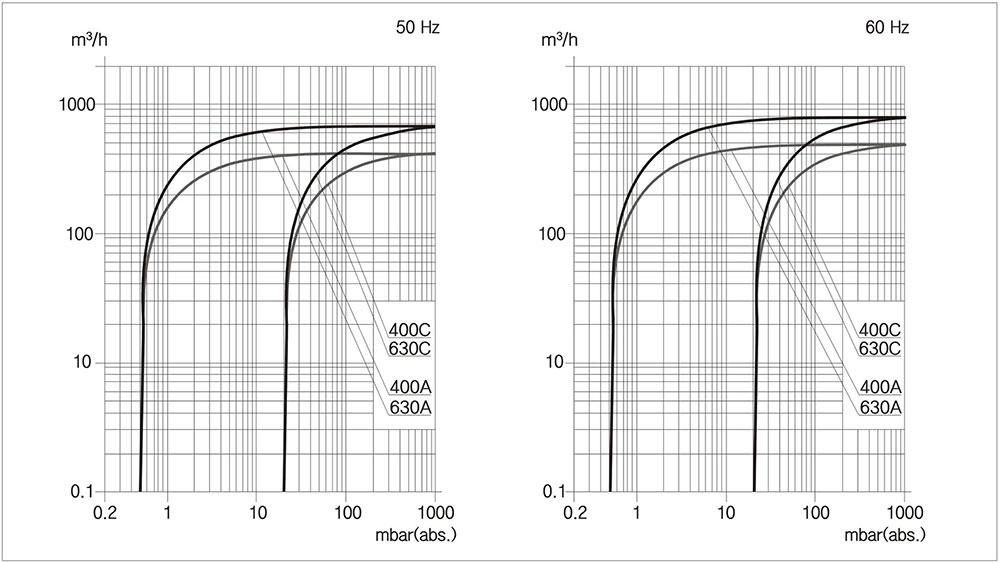

Performance Curve
