Rotary Vane Vacuum Pumps
Model Name
MVO-160
Series
MVO Series
Data
Rotary Vane Vacuum Pumps
Manufacturer information
provider logo
DOOVAC

Vacuum pump manufacturer, Industrial pump, Medical suction, Tank type vacuum pump and more

Problem with product info?
Update request
Manufacturer
DOOVAC
Brand
-
SKU
134376
Product Name
Rotary Vane Vacuum Pumps
Model Name
MVO-160, MVO-200, MVO-250, MVO-300
Size
-
Weight
-
Product Details
Technical Data MVO-160 MVO-200 MVO-250 MVO-300
Nominal Displacment 50Hz m3/hr 160 200 250 300
Nominal Displacment 60Hz m3/hr 190 240 300 360
Ultimate Pressure A mbar 0.5 0.5 0.5 0.5
Ultimate Pressure C mbar 20 20 20 20
Motor Version-3 50Hz V 220/380 220/380 220/380 220/380
Motor Version-3 60Hz V 220/380 220/380 220/380 220/380
Motor Version-1 50Hz V - - - -
Nominal Motor Rating 50Hz kW 4 5.5 5.5 5.5
Nominal Motor Rating 60Hz kW 5.5 7.5 7.5 7.5
Nominal Motor Speed 50Hz min-1 1455 1455 1455 1455
Nominal Motor Speed 60Hz min-1 1755 1755 1755 1755
Sound Level - dB(A) 70 72 72 72
Water Vapour Tolerance Max - mbar 40 40 40 40
Water Vapour Capacity - ℓ/h 7.6 12 12 12
Operating Temperature Ambient - °C 40 40 40 40
Oil Filling - liter 7 7 7 7
Weight Appox - kg 174 202 202 202



Product Dimension

A Cooling air entry

PT 2"/ NPT 2"

PT 2" / NPT 2"



3-M10 (DP 7)

B Cooling air exit
C Intel flange
D Exhaust port
E Oil Filling plug
F Oil filter
G Rubber foot
H Oil drain plug
K Oil sight glass



Model a b c d e f g h i j k
MVO-160-DA 898 276 411 366 29 313 414 411 570 400 267
MVO-200-DA 953 331 411 366 29 313 414 411 570 400 267
MVO-250-DA 973 276 486 366 29 313 414 411 570 400 267
MVO-300-DA 1051 354 486 366 29 313 414 411 570 400 267

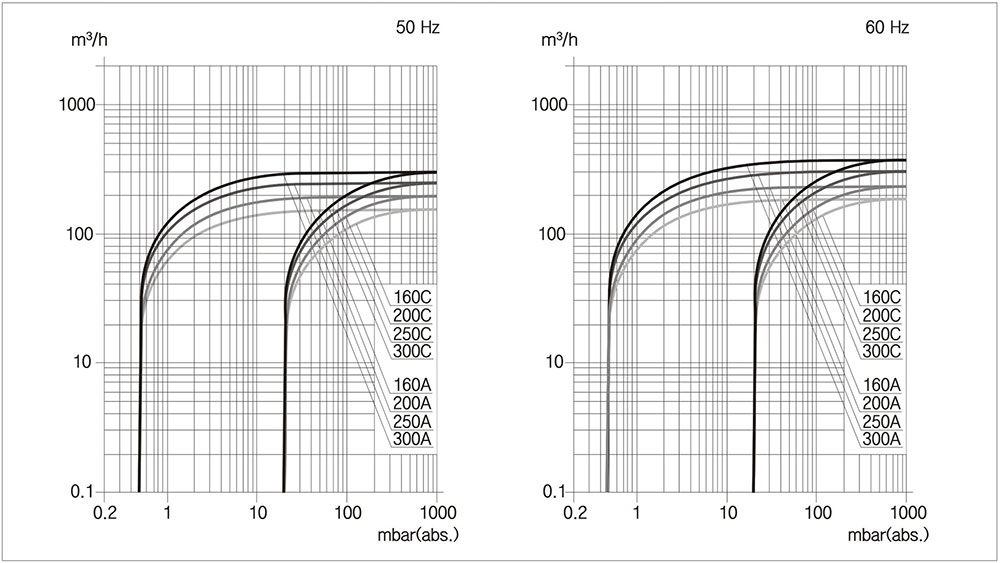

Performance Curve
