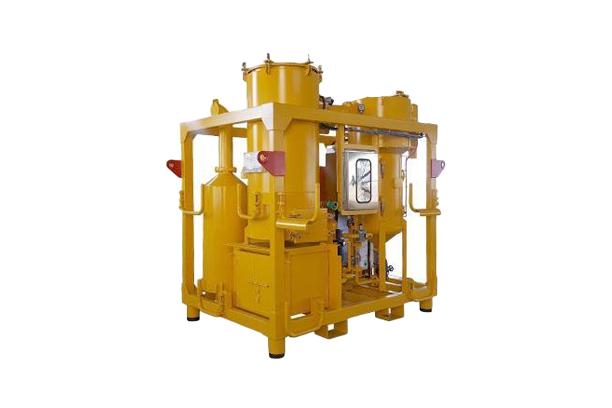

Compact Vacuum Blasting Machine (25 CMM)
Model Name
DW19VB-25P
Data
-
Manufacturer information
provider logo
Doowoong

Shot Blast Machine and Blasting Machine manufacturer

Problem with product info?
Update request
Manufacturer
Doowoong
Brand
-
SKU
141933
Product Name
Compact Vacuum Blasting Machine (25 CMM)
Model Name
DW19VB-25P
Size
-
Weight
-
Product Details
  • Features At same time abrasive suction & Shot blasting work without Dust
  • Use Remove rust & Blasting for welding line & Interlock with auto blasting robot
  • Abrasive Steel Grit, Shot Ball
MODEL DW19VB-25P
CAPACITY 25M³/Min x -450mmHg
SIZE W1800 x L2700 x H2800
WEIGHT Approx. 4 TON
RECOVERY CAPACITY Min 0.2 TON/HR - Max 0.5 TON/HR (WATER)
QUANTITY 1 UNIT
RECOVERY PIPING 100A
ROOTS BLOWER CAPACITY 25M³/Min
VACUUM PRESSURE -420mmHg
MOTOR 45KW x 4P x 440V x 60Hz
DUST COLLECTOR DISPOSAL AIR FLOW 25M³/Min
FILTERING AREA 20M²
FILTER SPEED 1.5M/Min
CARTRIDGE FILTER ø200 x 1000L x 4 EA
CLEANING AWAY SYS. JET PULSE SYS.
COLLECTION & BLASTING TANK VOLUME 0.22M³/Min
TANK SIZE ø780 x 540L
CAPACITY 500Kg (GRIT)
Doowoong
Shot Blast Machine and Blasting Machine manufacturer
Founded in March 1991, our company have manufactured machines and parts for surface-treatment machines,(eg : Cleaning, Paint Coating and Anticorrosion powder) for over thirty years. We are known in Korea for the development and production of abrasive blasting equipment and industrial gradeof the highest quality. Many of the components for our blasting equipment are sourced domestically. Using advanced Korean technology, and “Eagle Blast”, our registered brand of abrasive, is competitive in the world market. Our shot blast equipment and vacuum suction units have an excellent reputation and we are continuously developing and improving our products using creative techniques and technology.
