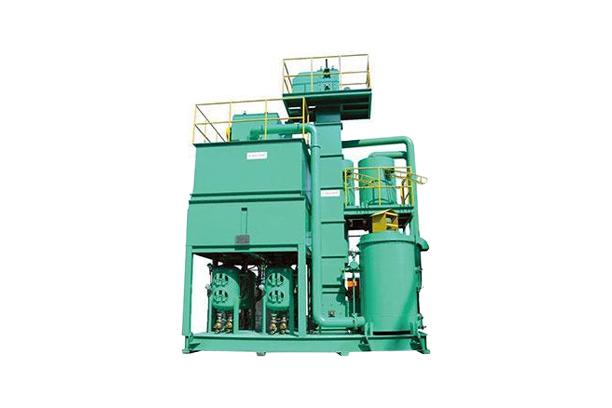

Package Blast Machine
Model Name
EB-702
Data
-
Manufacturer information
provider logo
Doowoong

Shot Blast Machine and Blasting Machine manufacturer

Problem with product info?
Update request
Manufacturer
Doowoong
Brand
-
SKU
141934
Product Name
Package Blast Machine
Model Name
EB-702
Size
-
Weight
-
Product Details
  • Type Manual grit storage / Blasting type
  • Features Blasting unit, Storage hopper, Conveying device, Control system one base-package portable type
  • Use Outdoor blasting



*BIGGER & SMALLER SIZES AVAILABLE ON REQUEST.*BIGGER & SMALLER SIZES AVAILABLE ON REQUEST.

MODEL EB-702
CAPACITY 2 NOZZLE x 4 UNIT
AIR BLAST UNIT MODEL  DWAB-220
TANK VOLUME 500kg
WORKING PRESSURE 6~7kg/㎠
STORAGE HOPPER CAPACITY 50 TON
SHOT GATE 200kg/Min
BUCKET ELEVATOR CAPACITY 50 TON/HR
TYPE BELT DRIVE
ROTARY SEPARATOR CAPACITY 15 TON/HR
TYPE DRUM SCREW
DUST COLLECTOR DISPOSAL AIR FLOW 50M³/Min
CLEANING AWAY SYSTEM AIR PULSE JET
CONTROL PANEL POWER 440V x 3PH x 60Hz
Doowoong
Shot Blast Machine and Blasting Machine manufacturer
Founded in March 1991, our company have manufactured machines and parts for surface-treatment machines,(eg : Cleaning, Paint Coating and Anticorrosion powder) for over thirty years. We are known in Korea for the development and production of abrasive blasting equipment and industrial gradeof the highest quality. Many of the components for our blasting equipment are sourced domestically. Using advanced Korean technology, and “Eagle Blast”, our registered brand of abrasive, is competitive in the world market. Our shot blast equipment and vacuum suction units have an excellent reputation and we are continuously developing and improving our products using creative techniques and technology.
