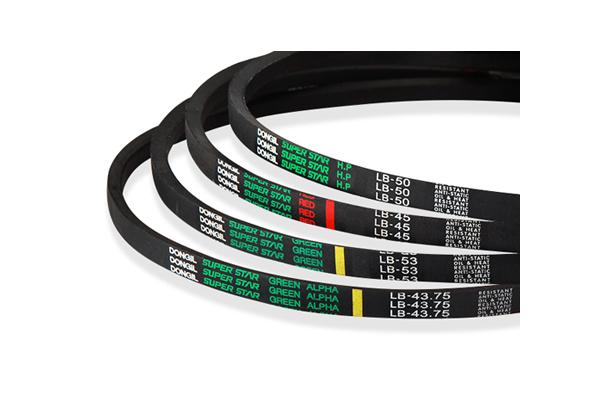

Features
Construction | Functions | Materials |
---|---|---|
① Cover fabric | Inner tension member protection | Synthetic fabric |
② Tension member | Primary material for transferring power | Aramid |
③ Compression rubber | Belt shape maintaining(upper) | Chip-reinforced CR |
④ Adhesive Rubber | Support and protection for adhesion power of tension member | CR |
⑤ Compression rubber | Belt shape maintaining(lower) | Chip-reinforced CR |
⑥ Bottom reinforced fiber | Improved reverse bending flexibility | Synthetic fabric |
CR : Chloroprene Rubber
Performance comparison
Grade | Wear resistance | Side pressure resistance | Initial elongation | Reverse flexibility |
---|---|---|---|---|
RED | ○ | ○ | ○ | ○ |
GREEN | ○ | ○ | ◎ | ◎ |
GREEN ALHPA | ○ | ◎ | ◎ | ◎ |
※ △ : Fair / ○ : Good / ◎ : Great
Measure of section
Width(㎜) | Height(㎜) | Angle | |
---|---|---|---|
LA Type | 12.5 | 8.0 | 40˚ |
LB Type | 16.5 | 9.5 | 40˚ |
LC Type | 22.0 | 11.0 | 40˚ |
