Model Name
DLC38-XL
Series
Ladder Trucks
Data
-
Manufacturer information
provider logo
Dream TNS

High place operation car and Ladder truck manufacturer

Problem with product info?
Update request
Manufacturer
Dream TNS
Brand
-
SKU
51420
Product Name
-
Model Name
DLC38-XL
Size
-
Weight
-
Product Details

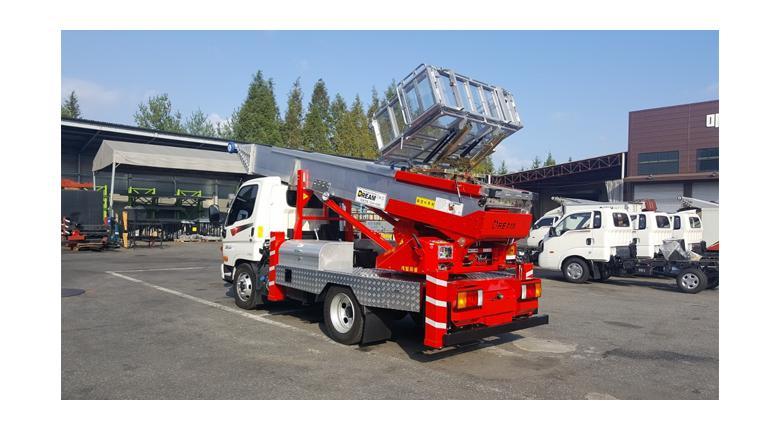

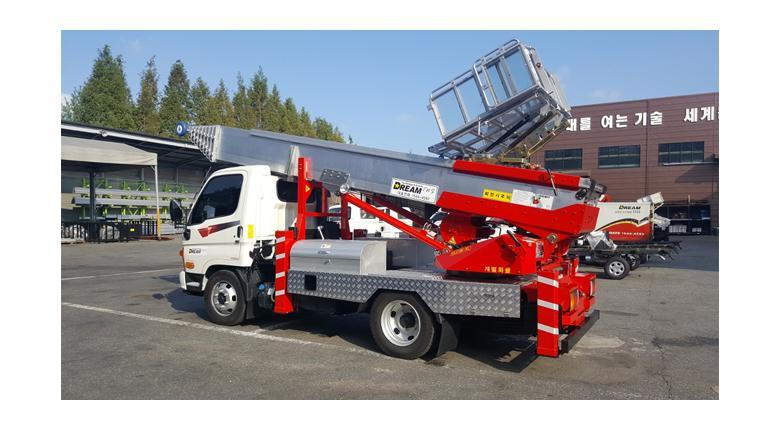

· Model: DLC 38-XL

· Number of section : 9

· Max height for operation
  (Number of floors available for operation): 38M

· Material : High strength special aluminium alloy

· Size: Length: 5990, Width: 1950, Height: 2885 (MM)

· Power source: P.T.O(Vacuum)

· Fuel: Diesel

· Carrier size: 2400x1520x550(Expended)

· Max load: 400kg

· Speed: 60m/min

· Outrigger: Hydraulic 4EA

· Outrigger Slide: Automatic

· Swing bearing : Optional

· Remote Controller: Cable(Standard), Wireless(Optional)

· Mounting vehicle: Hyundai 2.5ton QT




Dream TNS  DLC38-XL


Dream TNS  DLC38-XL 1

Dream TNSHigh place operation car and Ladder truck manufacturer
It has been 10 years since Dream TNS started researching and developing ladder truck with a motto of safety and quality after established in 2002. Pursuing to exert the greatest effort to serve customers in the perspective of them for the past 10 years, Dream TNS would like to extend a cordial appreciation to everlasting support and love from customers for making it feasible for us to come up with creative thoughts and proceed progressive behaviors. Dream TNS is currently releasing new items occupying predominance in the domestic market as well as exporting branded ladder trucks to many of the countries including China, Israel, Italia, and Australia. In addition, Dream TNS is exerting an effort to steadily develop technology to be a competitive company in the global market. Dream TNS will promise to serve customers well with better technology by challenging ourselves in the development of ladder truck and making a new leap forward in the field as we have been in the past 10 years.
