Product brief description

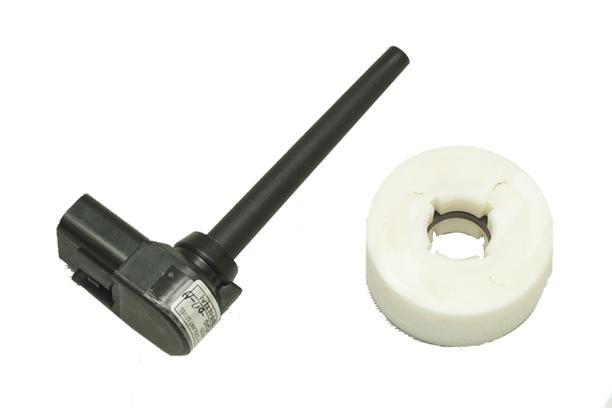

The coolant level switch is vertically mounted in the inside of coolant tank. The sensor operates an alarm signal when the float drops to predetermined level of reed switch. It is used for a purpose of low coolant level sensing.

Product Details

• Floater acceptable in coolant and water fluid

• Low coolant  level sensing

• Easy to install

• Vertical operating

• Sensing point  location is optional

• Rated Voltage :
  - coolant level switch : DC 5V
  - water level switch : DC 28V

• Floating Load : 100mA MAX

• Operating temperature : -30℃ ~ +110℃

• Storage temperature : -40℃ ~ +120℃

• Water proof to meet KS R 0015 M2
