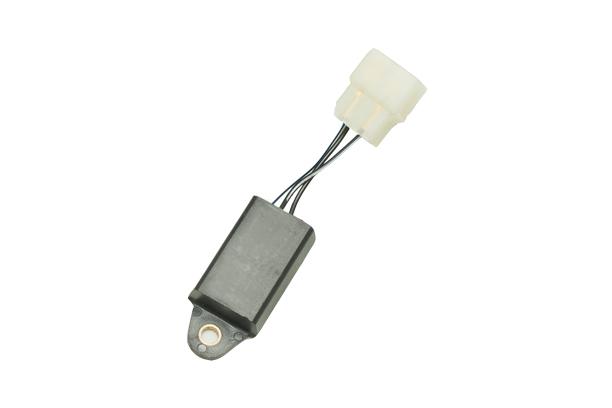

| Model | Time Delay Relay |
| Applicable vehicle | Forklift, Construction amd Agricultural machine |
Product brief description
This can be used for a variable-purpose of applications including event sequencing, instrument control and alarm circuits etc.This is designed to function in the several environmental requirements of heavy duty applications like off-highway.
Product Details
• Available in on-delay, true off delay and on/of delay
• Variable connector and cable are available
• Timing delays available from milliseconds to hours
• Several specifications available to meet customer needs
• Rated voltage : DC12V, DC24V, DC 8V ~ DC32V
• Operating temperature : -30℃ ~ +80℃
• Storage temperature : -40℃ ~ +90℃
• Load current : 200mA at 24Vdc, 120mA at 24Vdc
• Non metal case material : UL94-V0
