Features
Compact structure to be utilized in narrow spaces of factories
Filter Type
Bag Filter
Application
Drilling work, tailoring work, mixing work, sanding work, polishing work, grinding work
Specifications
Product Specifications
| TYPE | Air volume(CMM) | static pressure(mmAq) | Filter Quantity(Q'ty) | output(Kw) | size | weight(kg) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A width | B length | C height | D total width | F total height | H outlet(Ø) | ||||||
| MST-200 | 25 | 230 | 1.5 | 16pocket | 750 | 770 | 1422 | 850 | 1585 | 200 | 145 |
| MST-200CB | 25 | 230 | 1.5 | 16pocket | 1000 | 700 | 1132 | 1074 | 1200 | 200 | 145 |
*POWER : 220V 1Ø, 220V 3Ø, 380V 3Ø, 440V 3Ø(60, 50HZ)
Power and Filter Specifications
| TYPE | Power | filter | ||
|---|---|---|---|---|
| 60Hz(Premium),50Hz | size | quantity | type | |
| MST-200 | 220V/380V 3P, 220V 1P 440V 3P(60,50HZ) OPTION |
200 X 420 | 16 | General(PET) water repellent coating cotton cloth NOMEX |
| MST-200CB | 16 | |||
※ This specification may change without notice for performance improvement.
Features
|

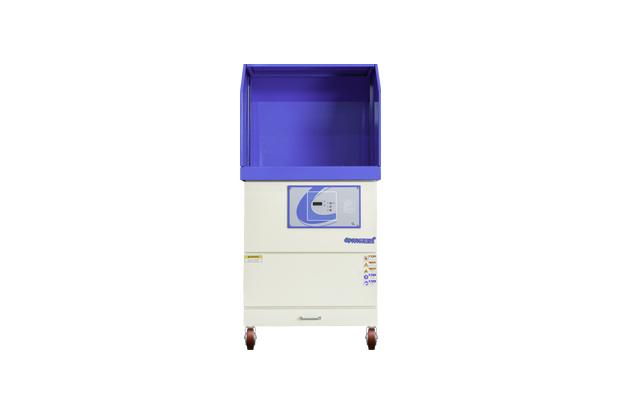

Compact Structure Both sides of the workbench and upper part’s opening and closing are available for processing large objects. |
|
Strong Suction Power high efficiency of dust collecting with downward suction method. |
|
Quiet operating Minimized the noise by installing the discharge port on the upper part. |
|
Mobility - Wheels are installed for easy movement and use - An integrated product that does not require piping work |
Controller
The digital controller that puts your convenience as its number one priority
• Improved visibility by LED touch switch operation, more refined panel, simple design
• Excellent dustproof and waterproof performances
