Features
Compact structure to utilize narrow spaces
Application
Machining Center, Automatic Lathe, Milling, Homing Machine, Tapping Machine, Electric Discharge Machine, etc.
Specifications
Product Specifications
| TYPE | Air volume(CMM) | static pressure(mmAq) | output(Kw) | size | weight(kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A width | B length | C height | D total width | E total length | F total height | G inlet(Ø) | H outlet(Ø) | |||||
| DMC-50 | 7 | 150 | 0.75 | 410 | 420 | 430 | 480 | 670 | 543 | 123 | 160 | 40 |
| DMC-100 | 12 | 150 | 0.75 | 410 | 420 | 430 | 480 | 670 | 543 | 123 | 160 | 45 |
| DMC-150 | 15 | 150 | 1.1 | 410 | 530 | 430 | 480 | 780 | 543 | 148 | 160 | 58 |
| DMC-200 | 20 | 150 | 1.5 | 410 | 420 | 430 | 480 | 670 | 543 | 123 | 160 | 60 |
※ This specification may change without notice for performance improvement
Features

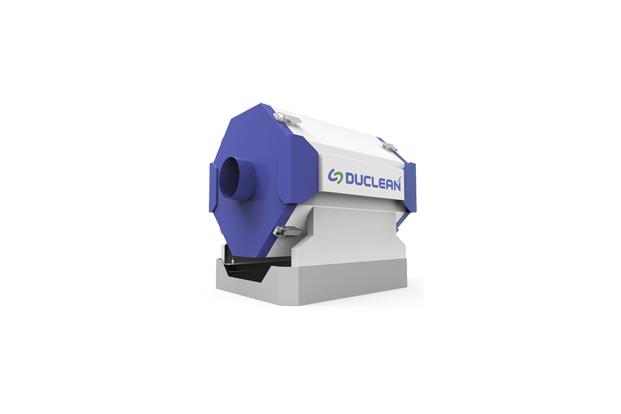

DMC SERIES
|
Small size and light weight It can be installed without restrictions even in high and narrow places such as the upper part of machine tool and the maintenance is simple. |
|
Maximum efficiency of collection and ease of use • 99.7% mist can be collected by special structure filter • No need for tools and special skills, so even beginners can easily replace filters |
|
Compact Mist Cleaner • Small size improves space utilization • Ultra compact and low noise mist cleaner suitable for indoor work • Maximizes mist collecting efficiency with installed AFTER Filter (optional) |
|
Mounted Oil Pan (Optional) • Oil pan can be installed to prevent leakage of oil |
