대형 Panel Marking Machine
Model Name
-
Size
-
Weight
-
Product Details

Marking에 대한 수요와 용도가 급증하면서 넓은 원판 전체에 마킹을 할 수 있는 장비의 요구가 많아졌습니다.

이레이저에서는 Scanner type과 Aixs 구동방식을 결합하여 scanner 가공영역 500X500mm를 X축 방향으로 4등분, Y축 방향으로 6등분하여 축으로 이동하며 가공할 수 있어 2000 X 3000mm의 원판 전체를 한번에 Marking이 가능합니다.

본 장비는 주문제작 장비로 scanner제어 기술과 축 제어기술 그리고 scanner와 축 이동의 sync를 맞추는 전문적인 기술이 결합된 장비입니다.

전체를 한번에 가공하는 타사 장비에 비하여 저렴하고 세밀한 가공이 가능한 것이 특징입니다.

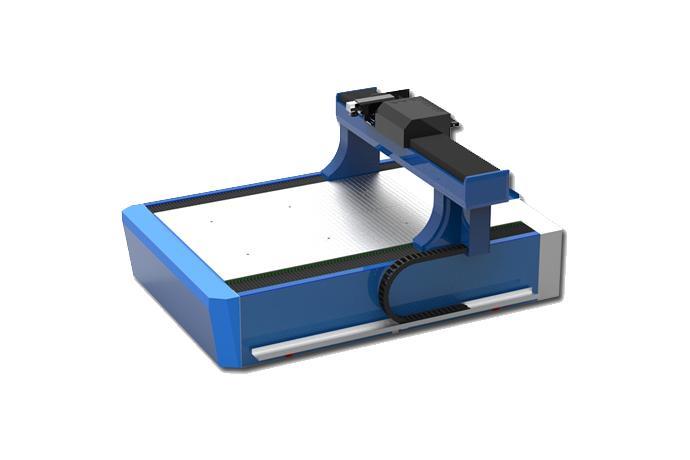

이레이저 대형 Panel Marking Machine



Specifications

ㆍScaner Marking 영역  500 X 500mm scaner 이동 작업
ㆍ전체 가공 영역  2000 X 3000mm or 2000 X 6000mm (2000x3000의 경우 X축-4등분, Y축-6등분)
ㆍWorking bad  Aluminium Vacuum table or T-SLOT Tabel
ㆍLaser  Fiber Laser 20W~500W or CO2 Laser 10W~500W
ㆍAxis Motion system  LM guide+Ballscrew or Linear Motor system
