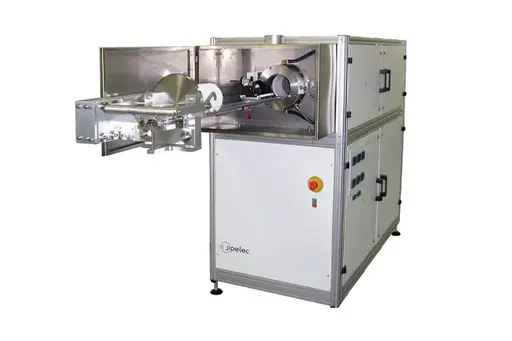

product Image
VACUUM FURNACES (TUBESTAR)
Model Name
TUBESTAR
Series
VACUUM FURNACES
Data
-
Manufacturer information
provider logo
ECM TECHNOLOGIES

Industrial furnace manufacturer, ICBP, Carburizing furnaces, Vacuum furnaces, Induction furnaces and melting

Problem with product info?
Update request
Manufacturer
ECM TECHNOLOGIES
Brand
-
SKU
131166
Product Name
VACUUM FURNACES (TUBESTAR)
Model Name
TUBESTAR
Size
-
Weight
-
Product Details

BATCH TYPE TUBE FURNACE FOR R&D & SMALL SCALE PRODUCTION

tube furnace

The TubeStar furnace platform is a compact batch type tube furnace. This platform is dedicated to diffusion, oxidation and deposition applications and has been designed to meet the needs of process engineering. The TubeStar range is modular and flexible. Indeed, it can be made of 1 to 4 independent tubes, with a capacity of 50 wafers per tube.



PLUS AND BENEFITS

The TubeStar furnace platform excels in the processing of small quantities of wafers, but also fits well with the treatment of large batches thanks to its flexibility. These have proven their efficiency during the qualification of process changes such as in PV manufacturing lines.

One of the key characteristics of this tube furnace lies in precision heat treatment combined with high levels of tuning flexibility. This allows a wide spectrum of applications.



POSSIBLE APPLICATIONS

  • Diffusion
  • LPCVD
  • Oxidation



EFFECTIVE DIMENSIONS
TUBESTAR

  • 100mm
  • 200mm
  • 300mm



OPTIONS

  • Atmospheric configuration
  • Primary vacuum pump
  • Secondary vacuum pump
  • LPCVD configuration
  • Process gas line
  • Wet oxidation
  • By-product treatment systems
