Rafale Shrinkforming Gun Cat. No.4040
Model Name
-
Data
Directions for use-EXPRESS SHRINK WRAPPING-Rafale Shrinkforming Gun Cat. No.4040
Manufacturer information
provider logo
EXPRESS SHRINK WRAPPING

Heat-SHRINK Tubing and Sleeves Manufacturer, Packing, Logistics and more

Problem with product info?
Update request
Manufacturer
EXPRESS SHRINK WRAPPING
Brand
-
SKU
141091
Product Name
Rafale Shrinkforming Gun Cat. No.4040
Model Name
-
Size
-
Weight
-
Product Details

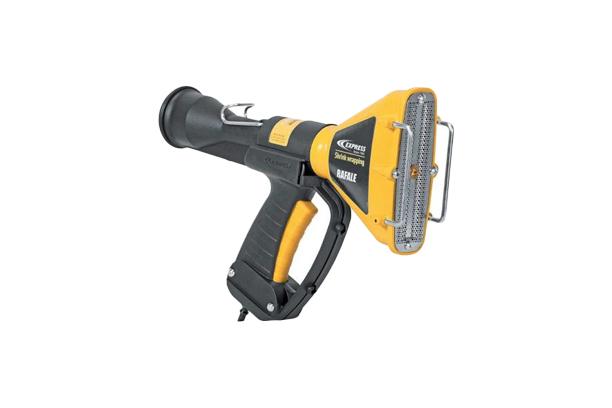

Just like the 65 kW version Cat. No. 4065, the Rafale shrinkforming gun Cat. No. 4040 can be used to shrink polyethylene sheets of all thicknesses, in the workshop or on worksites, and wrap packages, parts or machines of all shapes and formats. This heat-shrink gun connects to a … 13 kg or 35 kg propane cylinder.



Characteristics

Weight 5.21 kg
Dimensions 65 × 45 × 40 cm
Flow rate (kg / h) with supply pressure 2.5 :

2,47

Power (kW) with supply pressure 3.5 :

44

Gas flow (kg / h) with supply pressure 3.5 :

3,17

Weight of exposed product in (g) :

1300

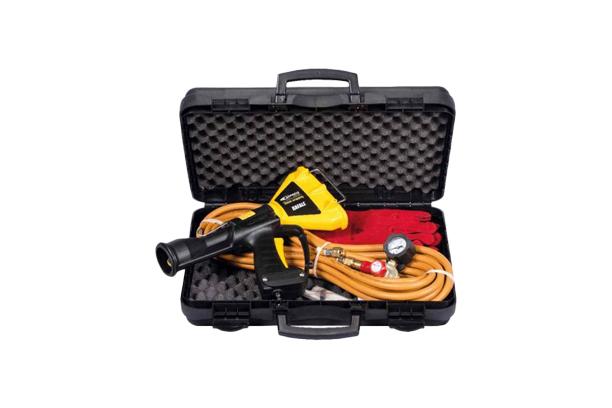

Composition

  • Rafale shrink forming gun 40kW
  • 10m hose internal diameter 6.3mm
  • Quick connect & turn
  • Pressure regulator with pressure gauge, adjustable 1.5b to 3.5b
  • Gloves
  • User Manual
  • Replacement Piezo Igniter

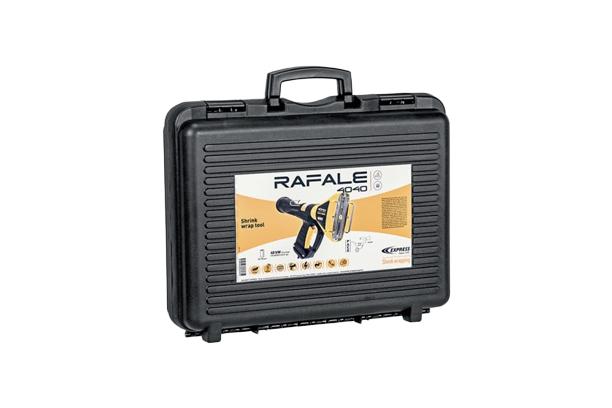

  • Supplied in a plastic case



Functions

  • 40 kW flat flame
  • Synchronized ignition (safety)
  • 360° rotation of the burner
  • Power adjustable on the regulator from 1.5b to 3.5b
  • Fast connection
  • Storage hook
