Rafale Shrinkforming Gun Cat. No.4065
Model Name
-
Data
Datasheet-EXPRESS SHRINK WRAPPING-Packaging-Rafale Shrinkforming Gun Cat. No. 4065
Manufacturer information
provider logo
EXPRESS SHRINK WRAPPING

Heat-SHRINK Tubing and Sleeves Manufacturer, Packing, Logistics and more

Problem with product info?
Update request
Manufacturer
EXPRESS SHRINK WRAPPING
Brand
-
SKU
141092
Product Name
Rafale Shrinkforming Gun Cat. No.4065
Model Name
-
Size
-
Weight
-
Product Details

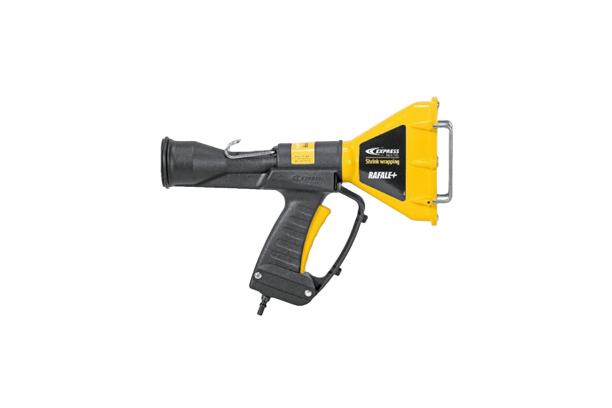

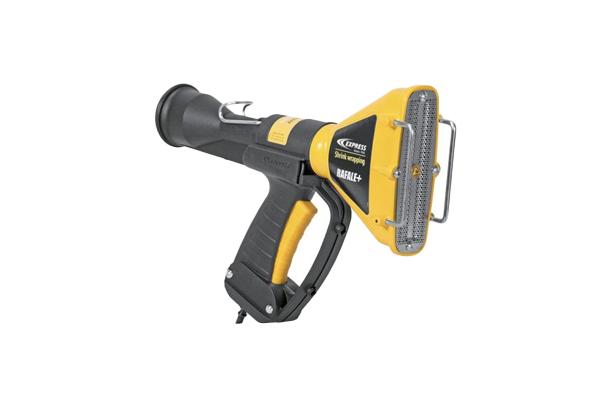

Just like the 40 kW version (Cat. No. 4040), the Rafale+ shrinkforming gun Cat. No. 4065 enables the shrinking of polyethylene covers of all thicknesses, in workshops or on work-sites, as well as the shrink-wrapping of packages, parts or machines of all shapes and formats.

This heat-shrink gun connects to a 13 kg or 35 kg propane cylinder.

THE 65 KW RAFALE+: A POWERFUL, EFFICIENT AND VERSATILE SHRINKFORMING GUN!

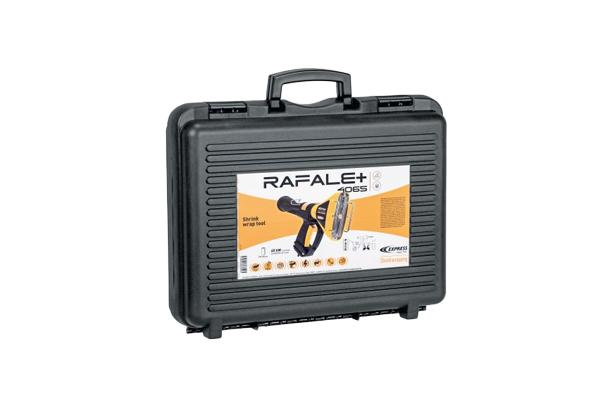

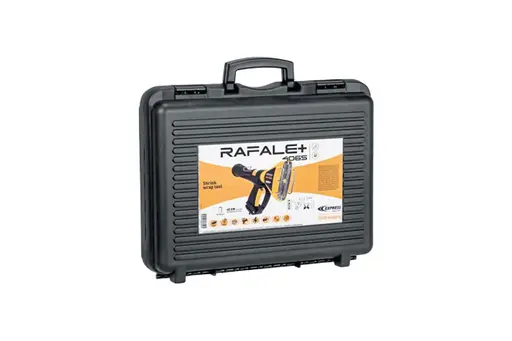

It is supplied in a carry case and can be used in a wide range of areas: Logistics – Packaging – Construction – Sailing – Aeronautics for uses such as shrinking, palletisation, wrapping, burning, containment, flame treatment and winter storage.



Characteristics

Weight 5.52 kg
Dimensions 65 × 45 × 40 cm
Power (kW)

With 1.5 bar supply pressure: 37

Flow (kg/h)

With 2.5 bar supply pressure: 3.75

Power (kW)

With 3.5 bar supply pressure: 66

Gas flow (kg/h)

With 3.5 bar supply pressure: 4.8

Weight (kg)

1.2

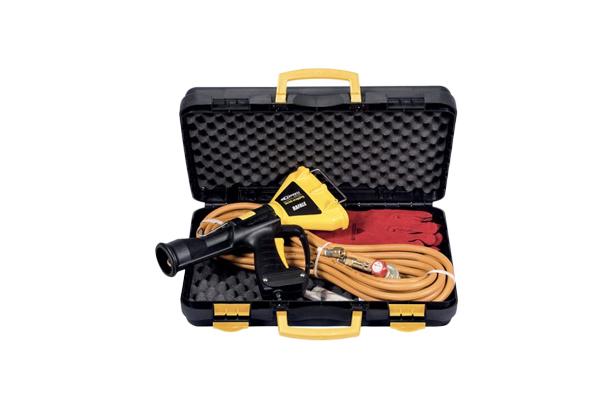

Composition

  • RAFALE+ shrinkforming gun
  • 10 m hose D6.3mm
  • Swivelling fast-connection
  • Regulator with pressure gauge, adjustable from 1.5b to 3.5b
  • Deflector
  • Anti-suction valve
  • Gloves
  • Man



Functions

  • 65 kW flat flame
  • Synchronised ignition (safety)
  • 360° rotation of the burner
  • Power adjustable on the regulator from 1.5b … 3.5b
  • Fast connection
  • Storage hook
