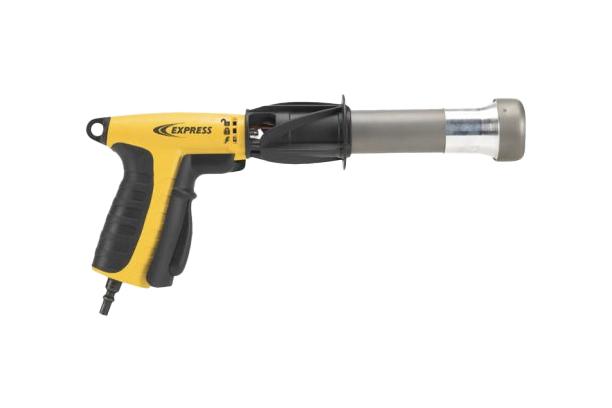

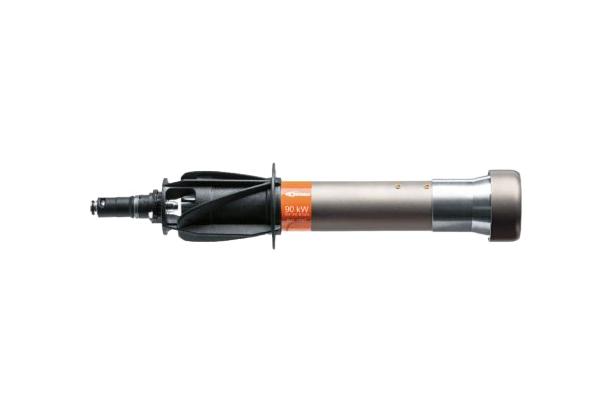

Now available as a separate item, the the 90 kW shrinkforming burner (Cat. No. 1091) is designed exclusively for the Hornet shinkforming gun.
I/ Addition of a second tube in the neck of the burner (a patented suction system), to achieve a wider range of operating pressures and, therefore, be able to withstand adverse weather conditions for a time and maintain a constant gas output pressure.
II/ Inclusion of a tube in the burner, on the nozzle side, enabling reduction of either the length of the neck or the flame pressure, making the burner resistant to flame flashbacks up to 0.1 bar.
III/ Development involved reducing power in order to obtain a more concentrated and, therefore, hotter flame on the work area.
IV/ The ignition line was reinforced and fixed in the tube, enabling an improvement in terms of repeated ignitions.
V/ Insertion of an interior tube near the air inlet, enabling it to much better withstand strong transverse winds.
Delivering power of 90 kW it is suited for use with thick films (220 µm to 320 µm) and is therefore perfect for containment, logistics and boating jobs.
Along with the Hornet case Cat. No. 10701 or Cat. No. 10931, this product provides operators with a complete kit to effectively perform various jobs.
Characteristics
Weight | 0.19 kg |
---|---|
Power (kW) : |
90 |
Consumption (Kg/h) : |
6,77 |
Flame Length (mm) : |
350 |
Weight (g) : |
210 |
Composition
Burner Hornet 90kW
