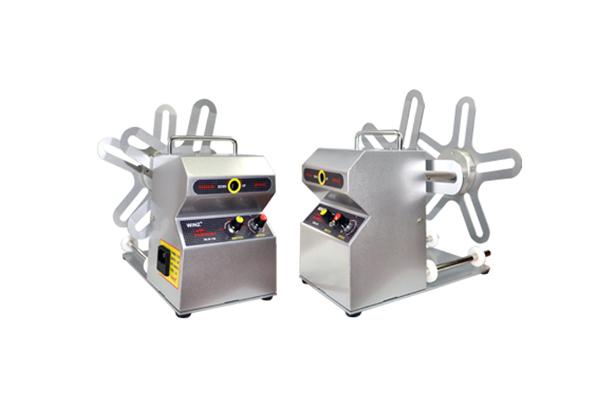

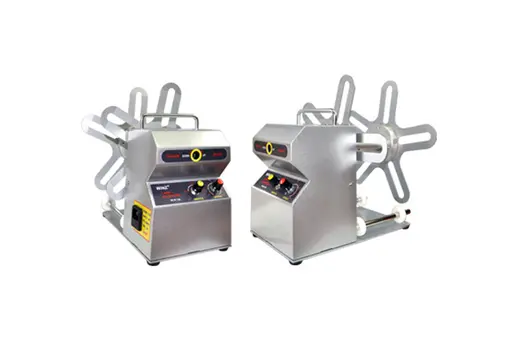

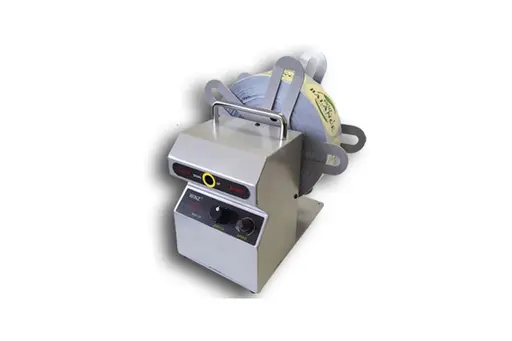

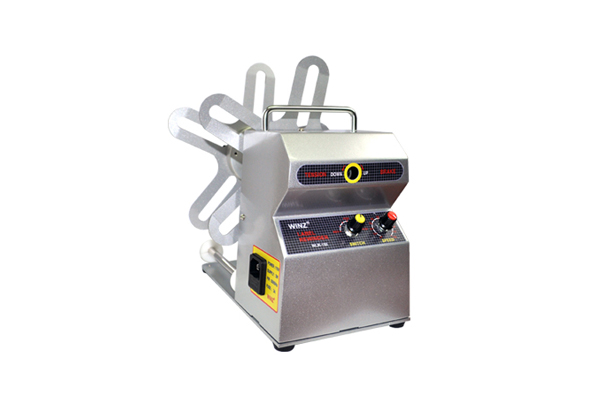

Exterior Label Rewinder
Optional unit to rewind the label or barcode to foam a roll
Label Rewinder holds and rewinds the label or any paper into a bobbin or roll.
Automatically adjust the winding speed, to be balanced with come-out.
Clockwise winding / Counter-clockwise winding, both available according to your workplace. Adjust tension with dial.
If you want to flip over the lable, use two Label dispenser at the same time to move from one to another.
When your label is ready with label rewinder, you can use label dispenser for dispensing the label.
WRL-Series
Label Rewinder will help you work to rewind the label roll from label printer. Just load the starting point on the rewinder and push start button to start to rewind. Then, it will be loaded on the roll automatically. It can control the speed of rewinding and tension of label roll to make it loose or tight. And you can choose clockwise turn or counterclockwise turn, so WRL Series can be installed at right side or left side\
Special Size can be ordered upon request.
Model | WRL-150 | WRL-200 |
Power | AC100~220V Free Voltage 60Hz/50Hz | |
Bobbin Size | 3Inch(Special bobbin size option upon requset) | |
Dimensions | W270 X D200 X H220 | W340 X D200 X H260 |
Weight | 430Kg | 5.20Kg |
Max label Width | 125mm | 150mm |
Max label Dimeter | 220Ø | 340Ø |
