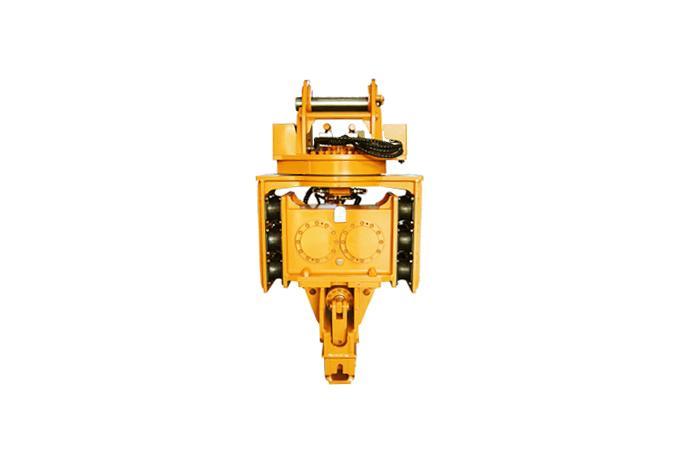

Specification Pile Driver
Description |
VIBRO 200 |
VIBRO 300 |
||
Working Weight |
Pile Driver |
kg |
1,400 | 1,600 |
Extension Boom |
kg |
1,500~2,000 |
1,500~2,000 |
|
Overall Height |
mm |
2,020 |
2,020 |
|
Operating Pressure |
Pile Driver |
bar |
200~220 |
200~220 |
Chuck |
bar |
200 |
200 |
|
Required Oil Flow |
Pile Driver |
l/min |
220 |
220 |
Chuck |
l/min |
30 |
30 |
|
Max. Vibration Force |
tons |
17 |
30 |
|
Frequency |
cpm |
3,000 |
3,000 |
|
Max. Width of Chuck Opening |
mm |
40 |
40 |
|
Suitable Base Machine |
tons |
18~25 |
26~40 |
|
Swing / Tilt Angle |
º |
360 / |
360 / |
|
Sheet Piles |
Width of the Pile |
mm |
400~600 |
400~600 |
Depth of the Pile |
mm |
100~200 |
100~200 |
|
H-beams (Size) |
mm |
H200~400 |
H200~400 |
