This product is manufactured by
FINE MECHATRONICS
Large Products
Model Name

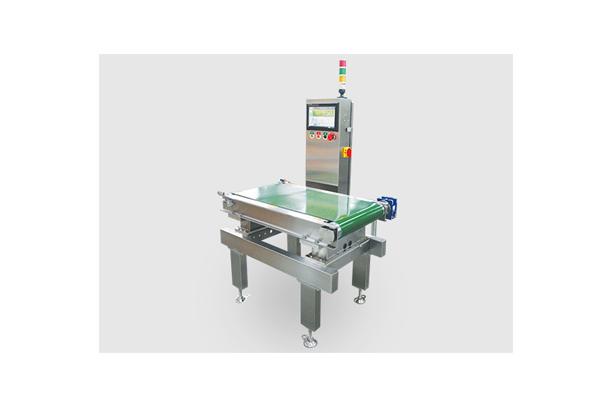

FAC-5900 LW-Series
Data
Manual-Fine Mechatronics-Automatic Check Weigher-Large Products-FAC-5900 LW-Series
Manufacturer information
FINE MECHATRONICS
Weighing system manufacturer, Weight Automatic check weigher, Metal detector, Indicator and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
FINE MECHATRONICS
Brand
-
SKU
126588
Product Name
Large Products
Model Name
FAC-5900 LW-Series
Size
-
Weight
-
Product Details
External Dimensions (unit: mm)
| MODEL | LW400 | LW500 | LW600 | LW700 |
| B(belt width) | 400 | 500 | 600 | 700 |
| L | 700, 800, 900, 1000, 1200, 1300 | |||
Specifications
| MODEL | LW400 | LW500 | LW600 | LW700 |
| Maximum capacity) | 20Kg | 30Kg | 40Kg | 60Kg |
| Weigh range) | 200~20,000g | 300~30,000g | 400~40,000g | 600~60,000g |
| Scale interval) | 5g | 10g | 10g | 20g |
| Maximum accuracy*) | ±15g | ±20g | ±30g | ±40g |
| Maximum weighing speed**) | 45ea/min | 35ea/min | 25ea/min | 20ea/min |
| Power requirements | 220VAC±10%, Single phase,50/60Hz | |||
| Environmental conditions | 5˚C~35˚C(41˚F~95˚F), Variation not to exceed ±2˚C(4˚F)/hr, Relative humidity: 35%~85% | |||
* Maximum accuracy may change depending on the product conditions.
** Maximum weighing speed may change depending on the product dimension and converyor speed.
