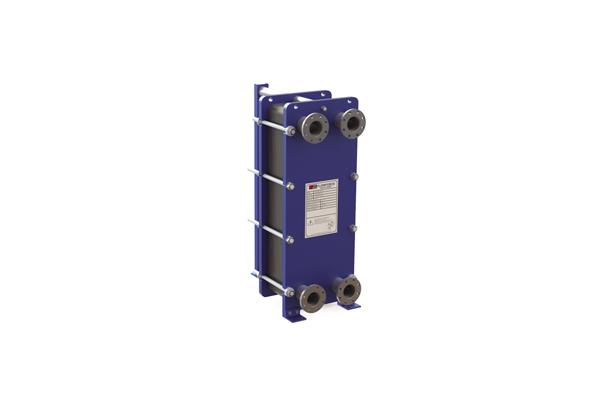

Gasketed plate water-Oil cooler
Model Name
-
Series
Oil Cooler
Data
Catalog-Flow Force-Oil Cooler-Gasketed plate water-Oil cooler
Manufacturer information
provider logo
FLOW FORCE

Manufacturer of Accumulator, Oil cooler, Sensor

Problem with product info?
Update request
Manufacturer
FLOW FORCE
Brand
-
SKU
126911
Product Name
Gasketed plate water-Oil cooler
Model Name
-
Size
-
Weight
-
Product Details

Adventage

• Maintain the fluid temperature at a very low and stable level - depending on the temperature of coolant.

• Particularly suitable for large flows and high cooling capacities and therefore a useful supplement to the brazed range.

• Suitable for a variety of applications and can easily install due to the light and compact design.

• Cost-efficient and environmentally friendly

• Can cater for heavily contaminated or high viscosity fluids, or even if the temperature difference between the hot and cold




Product Feature

• Consist of a stack of individually stamped heat transfer plates and gaskets

• The hot transfer plate is bolted to a frame consisting of a fixed cover and a movable cover.

• Can be easily disassembled for cleaning and maintenance.

• Possible to add more to achieve a higher cooling capacity.

• A variety of size with a number of plates and different stamp design available to cover the most of cooling capacity.

• Depending on working condition, special models using higher grade materials available. (ex. titanium plates for seawater)





Operating Data(1)

 Flow range

 0~40,764m/h

 Pressure range

 10~25bar (*Note : Pressure Surges must be avoided)

 Temperature range

 -30°C ~+180°C

 Connection

Standard : KS/JIS , ANSI, (Stud or Flange Type)
On request : DN25-DN500 Welded neck or Threaded.




Operating Data(2)

 Plate material

Stainless steel 1.4401(ANSI316/SS2347)

1.4306(ANSI 304/SS2333), Avesta 254 SMO, Titanium

 Plate thickness

0.4~0.6mm

 Seal

- NBR : 110°C(High temp:140°C)
- EPDM : 150°C - VITON : 180°C

 Media

Hydraulic oil, Lubrication oil, Rolling oil, engine oil HFC, HFA, HED,
operating fluids.

Water, Water-glycol, seawater(with titanium plate)
Limited possibility : steam applications


 Cooling capacity

0~1,1627kW

(dependent on the inlet temperature of the media and the flow rate)

 Contamination

Level of particles in suspension : within 10mg/liter,

Particle size : 0.6mm(spherical): thread-like particles cause a rapid rise
   in pressure drop.

 Other options

Safety heat exchanger, Dual unit with change-over valve - Insulation
