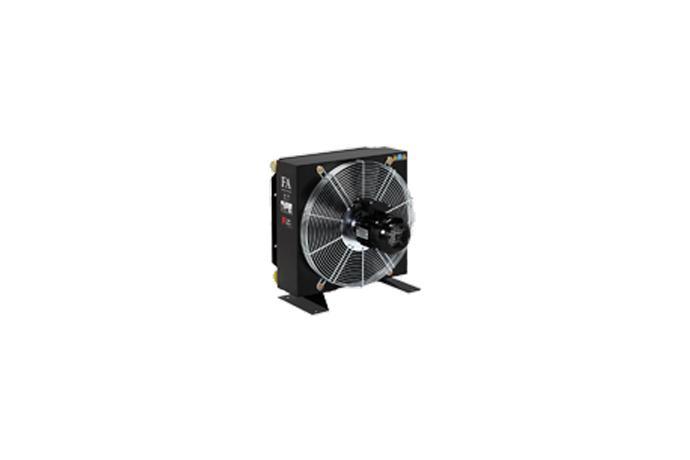

Air Oil Cooler
FA, FD, FC, FH - Series | |
Basic Specification | ㆍ Max. Cooling capacity : 170Kw, ETD 40℃ ㆍ Max. Flow rate : Up to 500L/min ㆍ Max. Working pressure : 14Bar(Dynamic pressure), 25Bar(Static pressure) ㆍ CE Approved |
Materials | ㆍ Cooler matrix : Aluminum powder coated ㆍ Fan blade : Fiber-glass reinforced polypropylene ㆍ Cooler housing : Carbon steel power coated ㆍ Fan quard & Others : Carbon steel |
Main Features | ㆍ Various working fluids ㆍ Low installation cost ㆍ Low operating cost ㆍ Easy maintenance |
Water Oil Cooler
FPO, FST, RFTC - Series | |
Basic Specification | ㆍ Max. Cooling capacity : 232Kw, ETD 40℃ ㆍ Max. Flow rate : Up to 1,000L/min ㆍ Max. Working pressure : 14Bar(Dynamic pressure), 30Bar(Static pressure) |
Materials | ㆍ Body :AL 6061, Carbonsteel, Stainless steel ㆍ Case : Cast iron, Stainless steel ㆍ Fin-tube : Copper+AL,(STD.),AL+NiAlloy(Brackish) |
Main Features | ㆍ Various working fluids ㆍ Light weight ㆍ Water-saving & High-efficiency ㆍ High quality & reliability ㆍ Easy maintenance ㆍ Original technology/International patent |
