Submerged Welder
Model Name
EQUUS-1000ASD
Series
Arc Welder
Data
-
Manufacturer information
provider logo
Gana Connect

Manufacturer of Arc welding machine, Resistance welding machine, Welding automation facility

Problem with product info?
Update request
Manufacturer
Gana Connect
Brand
-
SKU
61627
Product Name
Submerged Welder
Model Name
EQUUS-1000ASD
Size
-
Weight
-
Product Details

More information

1. Deep penetration with high current and heat insulation of fusion slag (2-3 times manual welding)

and fast welding speed (3-12 times manual welding) for effective welding

2. The multi-electrode type for effectiveness and capability to weld thick plates

3. Due to deep penetration, narrow welding groove can be used and save welding material cost.

4. If proper welding conditions, welding materials and wires are used, the cost and mechanical

property of deposited metal can be improved and bead shape becomes even, therefore it is suitable

for high quality welding.

5. After welding, less deformation forms, therefore it is suitable for the mass production.

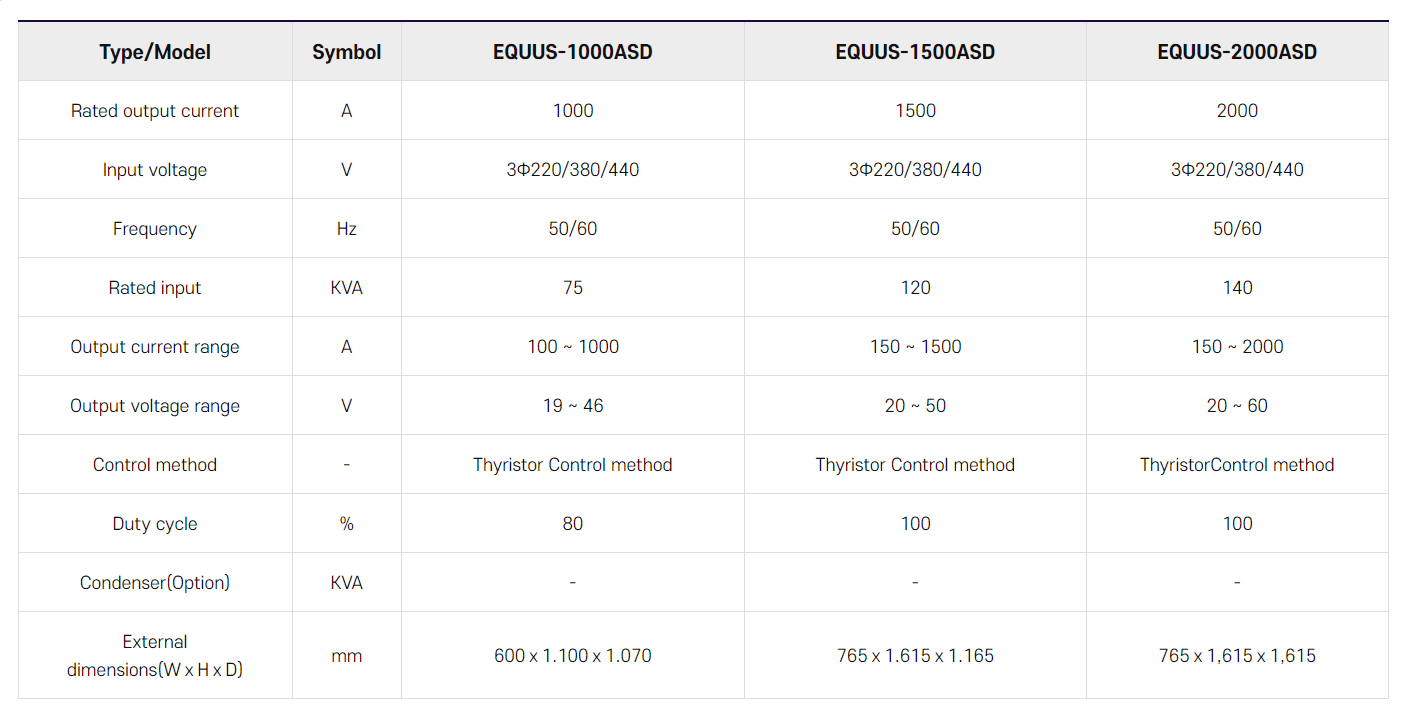

Specifications and Dimensions

Type/Model Symbol EQUUS-1000ASD EQUUS-1500ASD EQUUS-2000ASD
Rated output current A 1000 1500 2000
Input voltage V 3Φ220/380/440 3Φ220/380/440 3Φ220/380/440
Frequency Hz 50/60 50/60 50/60
Rated input KVA 75 120 140
Output current range A 100 ~ 1000 150 ~ 1500 150 ~ 2000
Output voltage range V 19 ~ 46 20 ~ 50 20 ~ 60
Control method - Thyristor Control method Thyristor Control method ThyristorControl method
Duty cycle % 80 100 100
Condenser(Option) KVA - - -
External dimensions(WⅹHⅹD) mm 600ⅹ1.100ⅹ1.070 765ⅹ1.615ⅹ1.165 765ⅹ1,615ⅹ1,615
