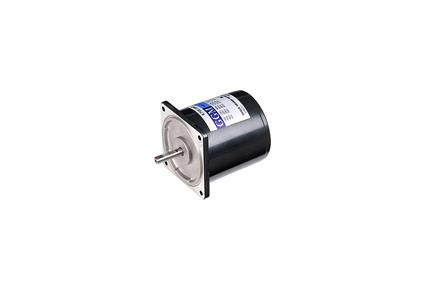

product Image
Induction Motor (40W (□80mm))
Model Name
K8I□40FC
Data
Manual-GGM-AC Motor-Induction Motor
Manufacturer information
provider logo
GGM

Geared motor manufacturer, Small motor, Reducer, AC motor, DC motor, BLDC and more

Problem with product info?
Update request
Manufacturer
GGM
Brand
-
SKU
131810
Product Name
Induction Motor (40W (□80mm))
Model Name
K8I□40FC, K8I□40FH, K8I□40FM
Size
-
Weight
-
Product Details

40W continuous rating, four poles

Model Out Put (W) Voltage (V) Frequency (Hz) Current (A) Start T. (N*m/Kgf*cm) Rated T. (N*m/Kgf*cm) Speed (rpm Condenser (μF)
K8I□40FC single-phase 40 220 50 0.45 0.23 0.315 1250 2.5
2.30 3.15
60 0.43 0.23 0.255 1500
2.30 2.55
230 50 0.50 0.27 0.315 1250
2.70 3.15
60 0.45 0.24 0.255 1550
2.40 2.55
K8I□40FH three-phase 40 220 50 0.48 0.97 0.294 1300 -
9.70 2.90
60 0.35 0.71 0.245 1600
7.10 2.45
230 50 0.50 1.01 0.300 1300
10.1 3.00
60 0.37 074 0.245 1600
7.40 2.45
K8I□40FM 380 50 0.26 076 0.300 1300 -
7.60 3.00
60 0.20 0.66 0.245 1600
6.60 2.45

* □ : SHAFT SHAPE (S : STARIGHT, G : PINION)

* 3 phase motor for over 380 voltage can't be used with inverter. Motor winding insulation can be damaged.
