product Image

TOP

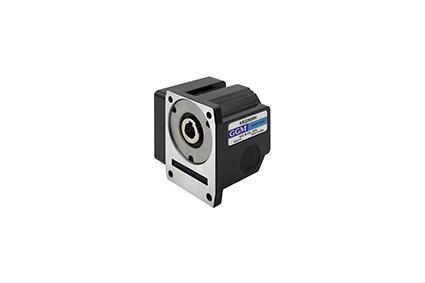

GEARHEAD Right angle shaft
Model Name
K8I□25N□(-T
Data
Manual-GGM-GEARHEAD
Manufacturer information
provider logo
GGMGeared motor manufacturer, Small motor, Reducer, AC motor, DC motor, BLDC and more
Problem with product info?
Update request
Manufacturer
GGM
Brand
-
SKU
132118
Product Name
GEARHEAD Right angle shaft
Model Name
K8I□25N□(-T, -T5), K8G□BRH
Size
-
Weight
-
Product Details

● INDUCTION MOTOR / 50Hz

Unit = above : N · m / below : kgfcm



● INDUCTION MOTOR / 60Hz

Unit = above : N · m / below : kgfcm

* The code in □ of gearhead model is for gear ratio.

* Output shaft of the geared motor rotates in the opposite direction of the motor. Others indicate rotation in the opposite direction.

* RPM is based on motor's synchronous rpm (50HZ:1500rpm, 60HZ:1800rpm) and calculated by dividing gear ratio. Actual rpm is 2~20% less than indicating rpm according to load size.

* Output torgue become smaller during starting than rated because of low transfering efficiency.
