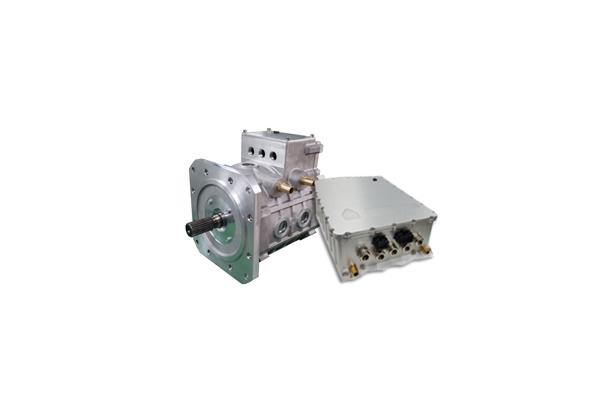

product Image
마을버스(6em)
Model Name
-
Series
전기 자동차용 모터 / 수냉식
Data
-
Manufacturer information
provider logo
HIGEN MOTOR

Motor, Servo Motor, Servo Drive and Motion Control System Manufacturer

Problem with product info?
Update request
Manufacturer
HIGEN MOTOR
Brand
-
SKU
126807
Product Name
마을버스(6em)
Model Name
-
Size
-
Weight
-
Product Details

특장점

ㆍSeries HEV 버스, Truck 등에 최적화 설계

ㆍ고출력밀도로 소형, 경량화 실현

- 최적의 수냉식 냉각설계로 냉각효과 극대화
- 저철손의 고급 전기강판사용

ㆍ구조강도 안정성확보로 고속영역사용

ㆍSpline 혹은 Round Shaft

ㆍ고온 절연물 사용 및 인버터 Surge 대비 설계

ㆍNTC 온도센서 속도센서(Resolver or hall effect sensor)



제원표

Motor Specification

ItemSpecItemSpec
Motor TypeIPMSM
Interior Permanent
Magnet Synchronous
Motor
ModelTBD
Cooling MethodWater GlycolLiquid Inlet↑12 litter/min
Peak Power100kW @ 3000r/minRated Power50kW
Peak Power Speed3000 r/minRated PowerSpeed3600 r/min
Peak Torque318 N.mRated Torque133 N.m
Motor Voltage360 VdcMax Motor Speed9000 r/min
Insulation Class↑ H ClassProtection DegreeIP66
Weight65kgDimensionRefer to Drawing
Speed SensorResolverTemp. SensorNTC
