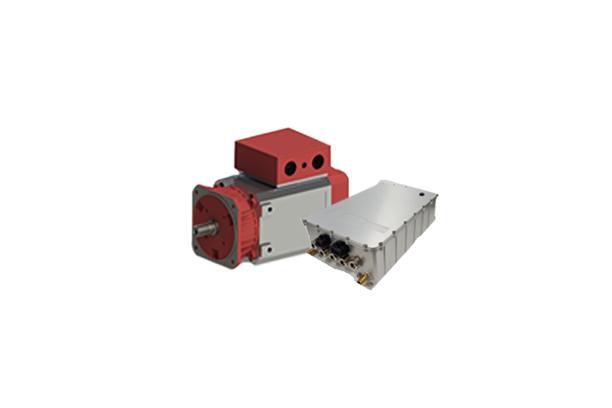

product Image
철도차량보수(모터카)
Model Name
-
Series
전기 자동차용 모터 / 수냉식
Data
-
Manufacturer information
provider logo
HIGEN MOTOR

Motor, Servo Motor, Servo Drive and Motion Control System Manufacturer

Problem with product info?
Update request
Manufacturer
HIGEN MOTOR
Brand
-
SKU
126810
Product Name
철도차량보수(모터카)
Model Name
-
Size
-
Weight
-
Product Details

특장점

ㆍSeries HEV 버스, Truck 등에 최적화 설계

ㆍ고출력밀도로 소형, 경량화 실현

- 최적의 수냉식 냉각설계로 냉각효과 극대화
- 저철손의 고급 전기강판사용

ㆍ구조강도 안정성확보로 고속영역사용

ㆍSpline 혹은 Round Shaft

ㆍ고온 절연물 사용 및 인버터 Surge 대비 설계

ㆍNTC 온도센서 속도센서(Resolver or hall effect sensor)



제원표

Motor Specification

ItemSpecItemSpec
Motor TypeIPMSMInterior
Permanent Magnet
Synchronous
Motor
ModelTBD
Cooling MethodWater GlycolLiquid Inlet↑12 litter/min
Peak Power150kW @ 2500r/minRated Power100kW
Peak Power Speed2500r/minRated Speed2500 r/min
Peak Torque573N.mRated Torque382N.m
Motor Voltage440VacMax Motor Speed3500r/min
Insulation Class↑ F ClassProtection DegreeIP54
Weight240kgDimensionRefer to Drawing
Speed SensorResolverTemp. SensorPT 1000

Torque & Power Curve



Specification of Inverter for Traction Motor

No.ItemDetailUnitSpecification
1Output PowerRated Power[kW]100
Peak Power[kW]200
2Input power batteryRated Voltage[Vdc]650
Max. Voltage[Vdc]750
Min. Voltage[Vdc]550
3CoolingType-Water
Inlet Temperature[℃]65↓
Flowing Rate[ℓ/min]12
4ElectricalCommunication-CAN
Operating Control Voltage[Vdc]12~24
5MechanicalDimension(W*D*H)[mm]313*460*120
(Excluding Plug In Part)
Ingress Protection Rating-IP67
6FeedbackPosition Sensor-Resolver
