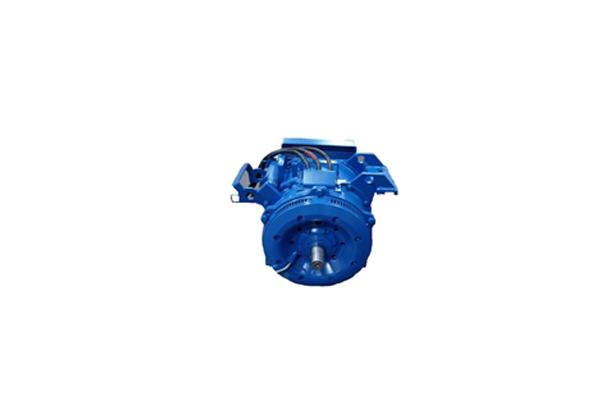

product Image
엔이브이(NEV)
Model Name
-
Series
전기 자동차용 모터 / 공냉식
Data
-
Manufacturer information
provider logo
HIGEN MOTOR

Motor, Servo Motor, Servo Drive and Motion Control System Manufacturer

Problem with product info?
Update request
Manufacturer
HIGEN MOTOR
Brand
-
SKU
126814
Product Name
엔이브이(NEV)
Model Name
-
Size
-
Weight
-
Product Details

특장점

ㆍSeries HEV 버스, Truck 등에 최적화 설계

ㆍ고출력밀도로 소형, 경량화 실현

- 최적의 수냉식 냉각설계로 냉각효과 극대화
- 저철손의 고급 전기강판사용

ㆍ구조강도 안정성확보로 고속영역사용

ㆍSpline 혹은 Round Shaft

ㆍ고온 절연물 사용 및 인버터 Surge 대비 설계

ㆍNTC 온도센서 속도센서(Resolver or hall effect sensor)



제원표

Motor Specification

ItemSpecItemSpec
Motor TypeIM
Induction Motor
ModelTBD
Cooling MethodAirLiquid Inlet-
Peak Power290kW @ 2250r/minRated Power250kW
Peak Power Speed2250r/minRated Speed2950 r/min
Peak Torque1230N.mRated Torque810N.m
Motor Voltage1350VacMax Motor Speed5627r/min
Insulation Class↑ H ClassDimensionRefer to Drawing
Speed SensorHall sensorTemp. SensorNTC
Weight620kg--



Torque & Power Curve
