product Image
범용 모선제어기
Model Name
-
Series
모션 제어 시스템
Data
-
Manufacturer information
provider logo
HIGEN MOTOR

Motor, Servo Motor, Servo Drive and Motion Control System Manufacturer

Problem with product info?
Update request
Manufacturer
HIGEN MOTOR
Brand
-
SKU
126816
Product Name
범용 모선제어기
Model Name
-
Size
-
Weight
-
Product Details

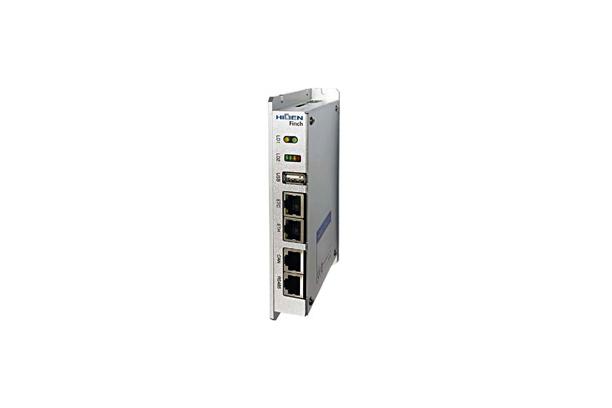

PLCopen 기반형 모션제어기 FINCH

ㆍ하이젠모션&로보틱스에서 개발한 KOSMOS엔진이 탑재된 독립형 범용 모션제어기
ㆍ고성능 네트워크를 통해 상용 HMI, 서보드라이브, 입출력 모듈 등을 연경하여 단축 및 다축 모션제어시스템을 구성
ㆍ PLCopen IEC-61131-3을 지원하는 PLC, Motion Libary 제공


항목

내용

CPU

AM3358 Sitara ARM Cortex-A8

Max. 1GHz

VECTOR Floating-Point unit (VFP,NEON)

Memory

SDRAM

512MB DDR3

NAND Flash

4Gbit x 16bit(512mb)

Non volatile

MRAM

256KB (128K x 16bit)

외부 저장 장치

SD Card(uSD Adapter 적용가능), 8bit

Interface

USB

USB 저장장치

UART-R232 Converter 내장형 케이블 (FTDI Chip 내장)

ETC

EtherCAT(CoE) 100Mbps

ETH

Ethernet, PC접소포트, IDE를 통한 프로그램 처리

CAN

CANopen

RS485

Modbus RTU HMI 접속

전원

DC 24V, 1.5A


상세 내용은 서보영업팀으로 문의 하시기 바랍니다.
